440134-1

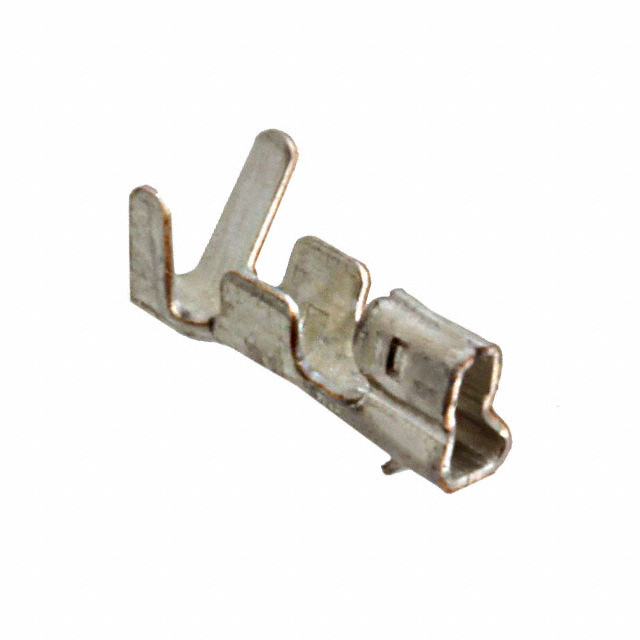

440134-1图片1

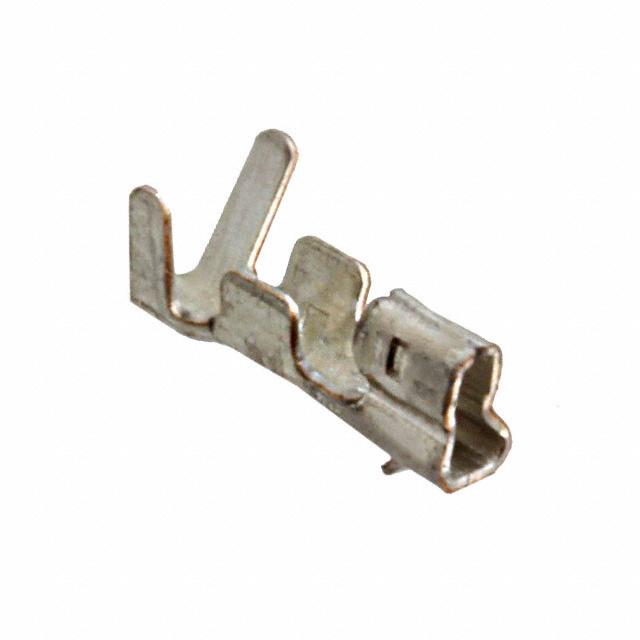

440134-1图片2
440134-1图片3
440134-1图片4
440134-1图片5
440134-1图片6
440134-1图片7
440134-1图片8
440134-1概述

22-28 AWG 镀锡 2.5 mm 压接 触点 插座

\- 插口 触点 锡 22-28 AWG 压接


立创商城:
Socket Contact Tin 22-28 AWG Crimp 非整盘发货是100一截


得捷:
CONN SOCKET 22-28AWG CRIMP TIN


贸泽:
集管和线壳 2.5mm Crimp Contact


艾睿:
Need a strong connection for your wires? This 440134-1 connector contact from TE Connectivity is the most traditional form of connections binding. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This connector contact has an operating temperature range of -25 °C to 85 °C. It uses the crimp termination method. Its wire is 22-28 AWG. This product is 5.8 mm long, 2.75 mm tall and 2.9 mm deep.


安富利:
Contact SKT Crimp ST Cable Mount


富昌:
22-28 AWG 镀锡 2.5 mm 压接 触点 插座


Verical:
Contact SKT Crimp ST Cable Mount 22-28AWG T/R


MASTER:
2.5mm Pitch HPI Crimp Contact


Powell:
High Performance Interconnects HPI


Electro Sonic:
2.5mm,Crimp Contact


440134-1中文资料参数规格
技术参数

极性 Female

线规 22AWG ~ 28AWG

触点电镀 Tin

额定电流Max 3 A

工作温度Max 85 ℃

工作温度Min -25 ℃

封装参数

封装 -

外形尺寸

高度 2.75 mm

封装 -

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8538908040

数据手册

在线购买440134-1
型号: 440134-1
描述:22-28 AWG 镀锡 2.5 mm 压接 触点 插座
