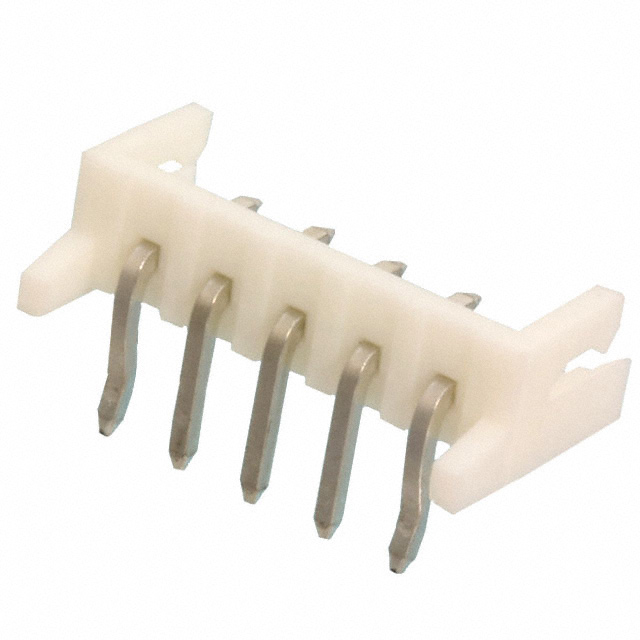

440053-5

Conn Shrouded Header HDR 5POS 2.5mm Solder RA Thru-Hole

针座 通孔，直角 5 位置 0.098"（2.50mm）

得捷:
CONN HEADER R/A 5POS 2.5MM

艾睿:
As an added safety precaution, the shrouded 440053-5 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 5 contacts that are made out of phosphor bronze and plated with bright tin-lead. It has a header type gender. Its pitch is 2.5 mm. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. It uses the solder termination method. This product is 15 mm long, 4.2 mm tall and 8.2 mm deep. 440053-5 is housed in natural nylon 6/6. This connector has an operating temperature of -25 to 105 °C.

安富利:
Conn Shrouded Header HDR 5 POS 2.5mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header HDR 5 POS 2.5mm Solder RA Side Entry Thru-Hole Bag

MASTER:
2.5MM PITCH HPI RIGHT-ANGLE POST HEADERS.

Powell:
High Performance Interconnects HPI

Electro Sonic:
2.5MM,HDR,5POS,R/A
