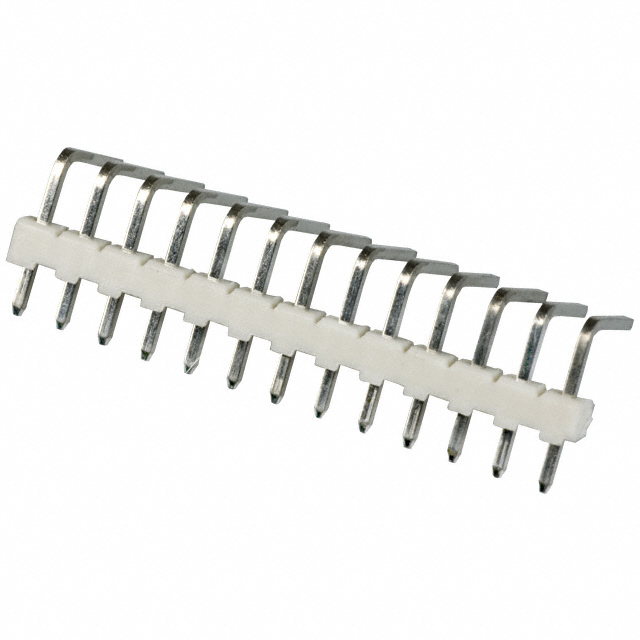

4-644694-3

Conn Unshrouded Header HDR 13POS 2.54mm Solder RA Thru-Hole

Connector Header Through Hole, Right Angle 13 position 0.100" 2.54mm

得捷:
CONN HEADER R/A 13POS 2.54MM

艾睿:
As an added safety precaution, the unshrouded 4-644694-3 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 13 contacts that are made out of copper alloy and plated with tin. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. 4-644694-3 is housed in natural polyester. This connector has an operating temperature of -55 to 105 °C. This product is 32.72 mm long, 6.35 mm tall and 8.94 mm deep. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Unshrouded Header HDR 13 POS 2.54mm Solder RA Thru-Hole Bag/Box

Newark:
# AMP - TE CONNECTIVITY  4-644694-3  13P MTA100 R/A HDR RETENTIVE New

MASTER:
MTA-100 HEADER ASSEMBLY,NARROW, .025 SQUARE RIGHT ANGLE POST WITH RETENTIVE LEGS,TIN PLATED

Electro Sonic:
13P MTA100 R/A HDR RETENTIVE
