4303.1093

4303.1093图片1

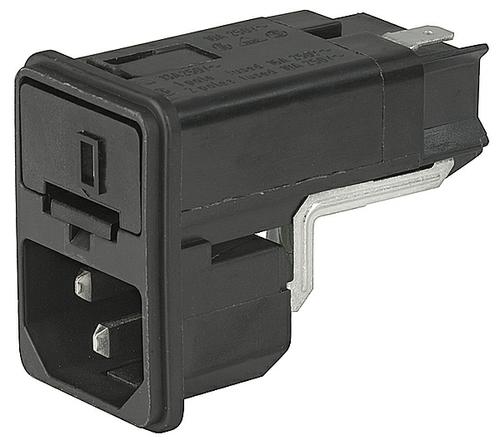

4303.1093图片2

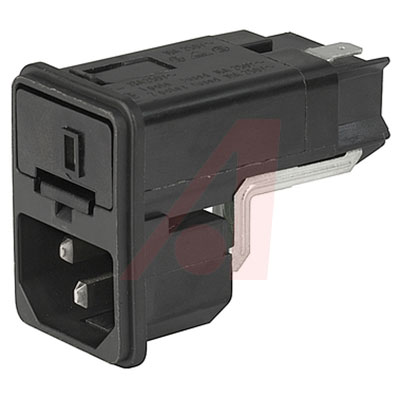

4303.1093图片3
4303.1093图片4
4303.1093图片5
4303.1093概述

Power Entry Module Unfiltered M 3POS 250VAC 10A Fuse/Voltage Selector ST 1Port

**KEC Series Power Entry Modules**

The KEC series of power entry modules are designed for use in a variety of applications and are available with a choice of connectivity options. The KEC connectors are equipped with a "V-Lock" notch intended for use with the latching cordset. This cord latching system prevents against accidental removal of the cordset.


得捷:
PWR ENT MOD RCPT IEC320-C14 PNL


Allied Electronics:
PEM w/Fuseholder; IEC; C14; 1P; 125VAC; 13A; Panel Mt-Snap-2mm; QC Term; 3/4 Digit Slctr


Chip1Stop:
Power Entry Module Unfiltered M 3 POS 250VAC 10A Fuse/Voltage Selector ST 1 Port


Newark:
# SCHURTER  4303.1093  KEC, Mounting:Snap-in, 2 mm, Quick connect terminals 4.8 x 0.8 mm, voltage selector: 3/4 digits, Fuse holder: 1-pole, Appliance


MASTER:
KEC POWER ENTRY MODUL 10A


Online Components:
KEC, Mounting:Snap-in, 2 mm, Quick connect terminals 4.8 x 0.8 mm, voltage selector: 3/4 digits, Fuse holder: 1-pole, Appliance Inlet: ...


CDI:
KEC POWER ENTRY MODUL 10A


Electro Sonic:
KEC POWER ENTRY MODUL 10A


4303.1093中文资料参数规格
技术参数

触点数 3

针脚数 3

额定电流Max 10 A

额定电压Max 250 VAC

封装参数

安装方式 Panel, Snap-In, Quick Connect

外形尺寸

长度 30 mm

宽度 55 mm

高度 43.5 mm

物理参数

工作温度 -25℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536698000

数据手册

在线购买4303.1093
型号: 4303.1093
制造商: Schurter
描述:Power Entry Module Unfiltered M 3POS 250VAC 10A Fuse/Voltage Selector ST 1Port
