4301.0503概述

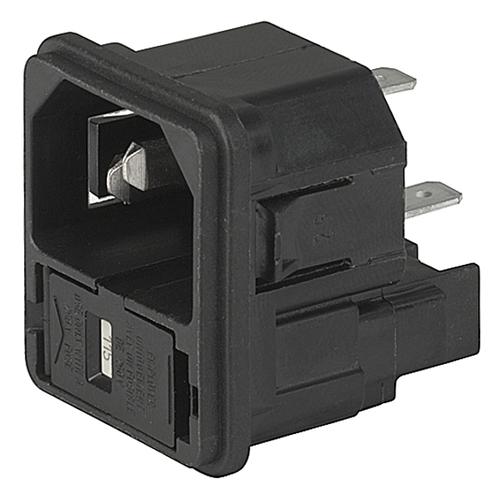

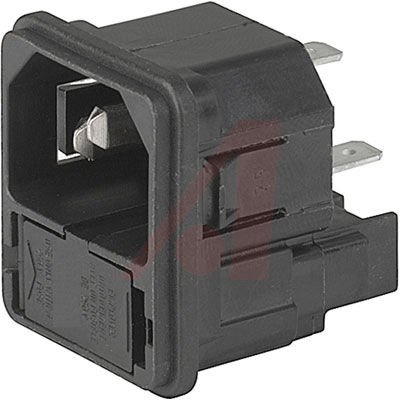

SCHURTER 4301.0503 电源插头, IEC 带开关
The KEA series Power Entry Module without line filter. Screw-on version from front or rear side, snap-in version from front side panel mount. Appliance inlet protection class I, fuse holder for fuse-links 5 x 20mm 1- or 2-pole, with or without voltage selector step switch functions. Suitable for use in equipment according to IEC/UL 60950.
- .
- Very compact design
- .
- Components internally wired
- .
- Integrated voltage selector
- .
- V-Lock notch standard
- .
- Quick connect terminals 4.8 x 0.8mm
- .
- Available with or without internal connections
- .
- Plug removal necessary for fuse-link replacement
4301.0503中文资料参数规格
技术参数
触点数 3
极性 Male
额定电压AC 250 V
额定电流 10 A
易燃性等级 UL 94 V-0
针脚数 3
接触电阻 5 mΩ
额定电流Max 10 A
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压Max 250 VAC
额定电压 250 VAC
额定电压AC Max 250 V
封装参数
安装方式 Quick Connect, Panel
外形尺寸
长度 30 mm
宽度 27.5 mm
高度 34 mm
物理参数
颜色 Black
工作温度 -25℃ ~ 70℃
其他
产品生命周期 Active
包装方式 Box
制造应用 Power Management
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
海关信息
ECCN代码 EAR99
HTS代码 8536698000
