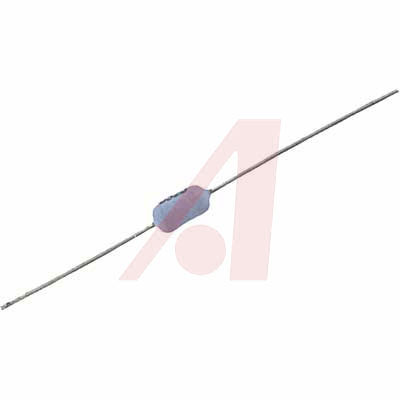

42J33RE

42J33RE图片1
42J33RE图片2
42J33RE图片3
42J33RE图片4
42J33RE图片5
42J33RE图片6
42J33RE图片7
42J33RE概述

绕线电阻 33Ω ±5% 2W

Economical conformal silicone-ceramic coated resistors. These all-welded resistors are characterized by low temperature coefficients and resistance to thermal shock, ideal for communications and a wide range of electrical and electronic applications. Ceramic core and solder coated axial leads.

**Features:**

* Economical

* Applications Include Commercial, Industrial and Communications Equipment

* Stability Under High Temperature Conditions

* All-Welded Construction


得捷:
2W 33 OHMS SILICONE 5%


立创商城:
绕线电阻 33Ω ±5% 2W


艾睿:
Res Wirewound 33 Ohm 5% 2W ±20ppm/°C Conformal Silicone Ceramic AXL


Allied Electronics:
2W 33 OHMS SILICONE 5%


Verical:
Res Wirewound 33 Ohm 5% 2W ±20ppm/C Conformal Silicone Ceramic AXL


MASTER:
Res Wirewound 33 Ohm 5% 2W ±20ppm/°C Conformal Silicone Ceramic AXL


Electro Sonic:
Res Wirewound 33 Ohm 5% 2W ±20ppm/°C Conformal Silicone Ceramic AXL


42J33RE中文资料参数规格
技术参数

额定电压DC 100 V

容差 ±5 %

额定功率 2 W

产品系列 40

电阻 33 Ω

阻值偏差 ±5 %

封装参数

安装方式 Through Hole

引脚数 2

封装 轴向引线

外形尺寸

长度 10.3 mm

直径 5.60 mm

脚长度 38.1 mm

封装 轴向引线

物理参数

温度系数 ±20 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 1000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

42J33RE引脚图与封装图
42J33RE引脚图
42J33RE封装图

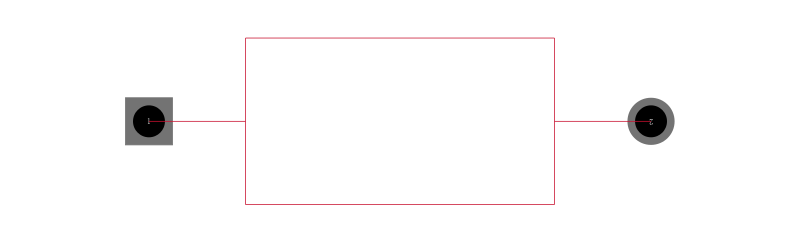

42J33RE封装焊盘图
在线购买42J33RE
型号: 42J33RE
制造商: Ohmite
描述:绕线电阻 33Ω ±5% 2W
