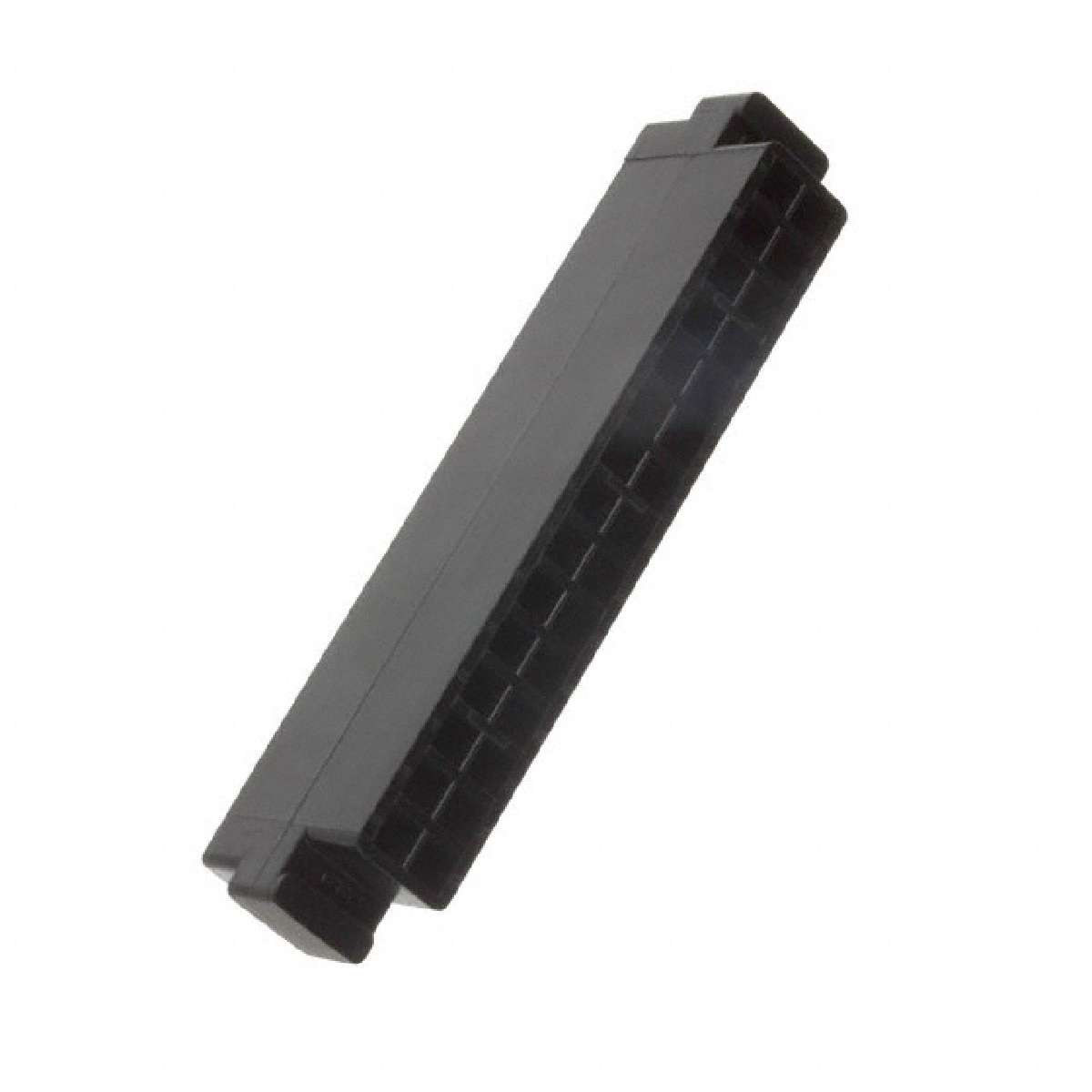

标准卡缘连接器 HSG AMP LEAF 15 POS
30 Position Card Edge Connector Housing Black 0.156" 3.96mm Panel Mount
得捷:
CONN CARDEDGE HSG 30POS .156 BLK
贸泽:
标准卡缘连接器 HSG AMP LEAF 15 POS
艾睿:
Ensure a complete connection between two different circuit boards is made using TE Connectivity&s;s 531271-1 discrete wire housing. This RCP connector has 15 RCP contacts. Its pitch is 3.96 mm. It has a straight body orientation. It has a receptacle type gender. This is a 2-row connector. This device has a maximum current rating of 5 A/contact. This rectangle connector has an operating temperature of -55 to 105 °C. This product is 70.66 mm long, 8.89 mm tall and 17.78 mm deep. 531271-1 is housed in black phenolic.
安富利:
Conn Housing RCP 15 POS 3.96mm Crimp ST
Verical:
Conn Housing RCP 15 POS 3.96mm Crimp ST Cable Mount Black Box
Newark:
# AMP - TE CONNECTIVITY 531271-1 HSG AMP LEAF 15 POS New
MASTER:
HOUSING, AMP LEAF, MODIFIED EAR AND CARD SLOT
Powell:
.156 Centerline Connectors AMP-LEAF
Electro Sonic:
HSG AMP LEAF 15 POS
触点数 15
排数 2
针脚数 30
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Panel
引脚间距 3.96 mm
长度 66.6 mm
宽度 17.8 mm
高度 17.78 mm
引脚间距 3.96 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
