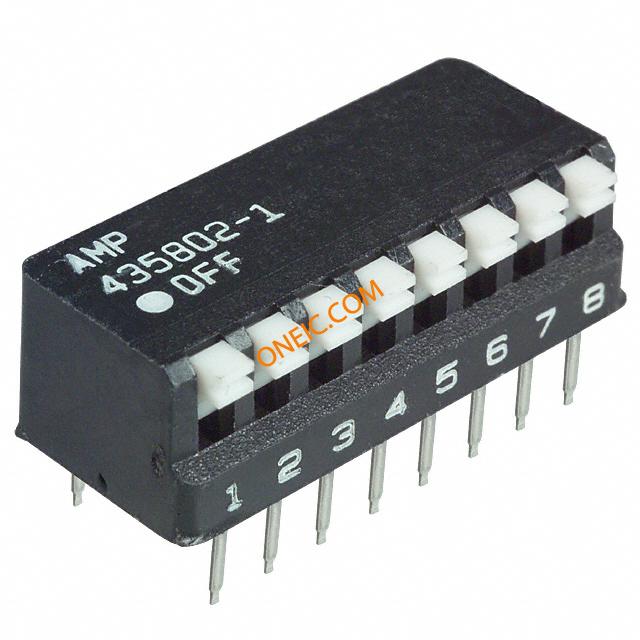

ALCOSWITCH - TE CONNECTIVITY 5435802-1 DIP / SIP Switch, Piano Key, 8Circuits, SPST, Through Hole, 7000 Series, DIP Sealed
Easily customize your printed circuit with the use of the dual in-line package switch, designed from . This device has a maximum current rating of 0.1 A @ 5VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -55 °C to 105 °C. The 5435802-1 DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product is 22.35 mm long, 7.37 mm tall and 9.65 mm deep. This product"s terminal pitch is 2.54 mm.
触点电镀 Tin
额定电压DC 24 V
接触器类型 Standard
额定电流 25 mA
方向 Right Angle
触点类型 SPST
电路数 8
易燃性等级 UL 94 V-0
针脚数 8
额定电流Max 0.1A @5VDC
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 DIP
引脚间距 2.54 mm

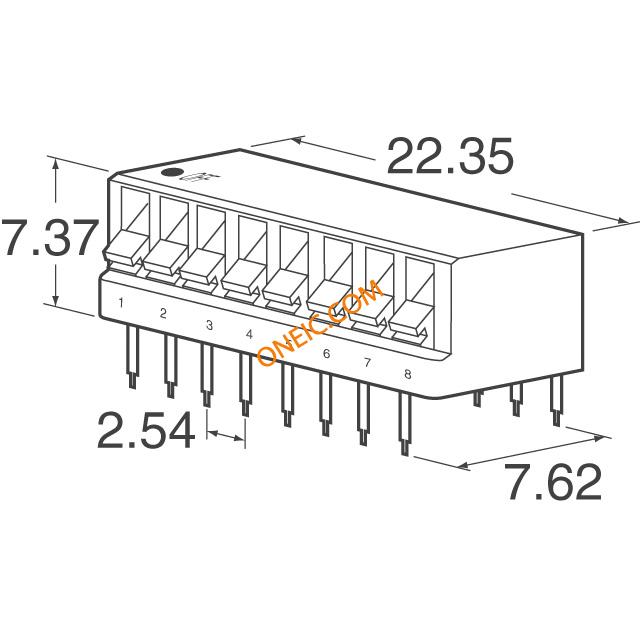

长度 22.35 mm
宽度 9.65 mm
高度 7.37 mm
封装 DIP
引脚间距 2.54 mm
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
