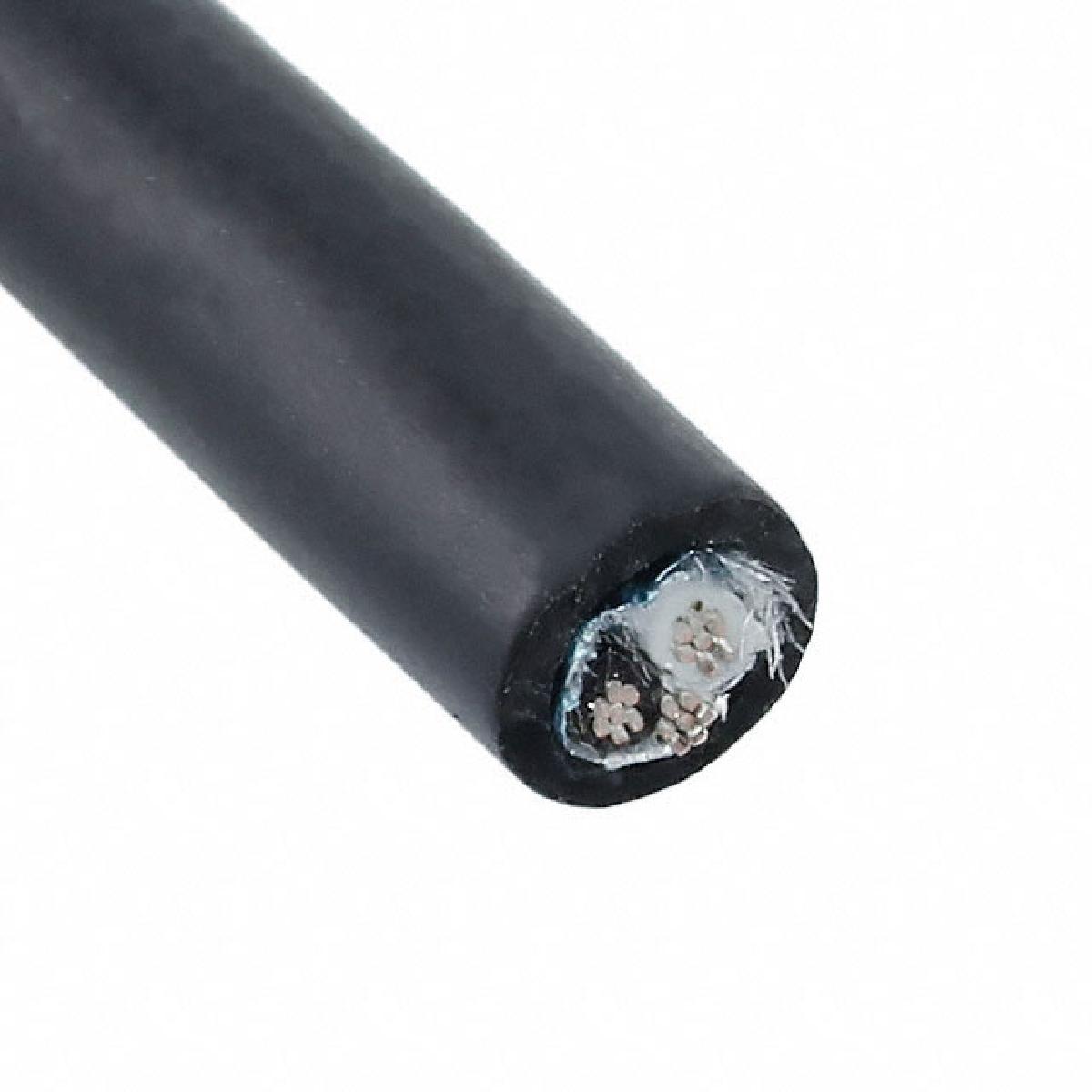

ALPHA WIRE 5616B2001 BK005 Multipair Shielded Cable, Instrumentation, Black, 1 Pair, 20AWG, 0.51mm², 100Ft, 30.48m
Overall Shielded Multi Pair Cable, PVC/Nylon Insulation Material Features Standard Bare Copper Conductors Extruded PVC Insulation with Nylon Paired Constructions Color-Coded One Black, One White; Triple Constructions Color-Coded Black, White and Red All Pairs and Triples Twisted To Minimize Magnetic Noise Each Conductor Multi-pairs and Multi-triples Printed with a Pair or Triple Number At 1" 25.4 mm Intervals for Easy Identification; Numbers Are Printed Alternately and Inverted Nylon Jacketing of Each Conductor Provides Increased Dielectric Strength When Shielded, Aluminum Polyester Shield Tape and Tinned Copper Drain Wire Provided For Maximum Electrostatic Noise and Cross Talk Rejection Nylon Rip Cord Under Jacket to Simplify Stripping Extruded Black PVC Jacket Exceeds Test Criteria Established By Underwriters Laboratories Tray Fire Test, Based On IEEE Standard 383, 70,000 BTU Flame Test Temperature Range: -20 degC to +9O degC UL +90 degC Static Conditions Voltage Rating: 600 Volts UL PVC/Nylon Construction Results in a 600 Volt Small Diameter Cable that Saves Space Nylon Permits a Slipping Action Between Conductors that Relieves Stresses Developed When Cable Is Flexed Listed as Tray Cable Under UL Standard 1277 and NEC Article 340 Article 725 Class 1 Available In Long Continuous Lengths Commonly Utilized For In-Plant Process Control
