CINCH 5-141 端子排

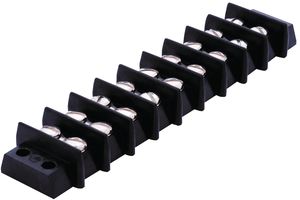

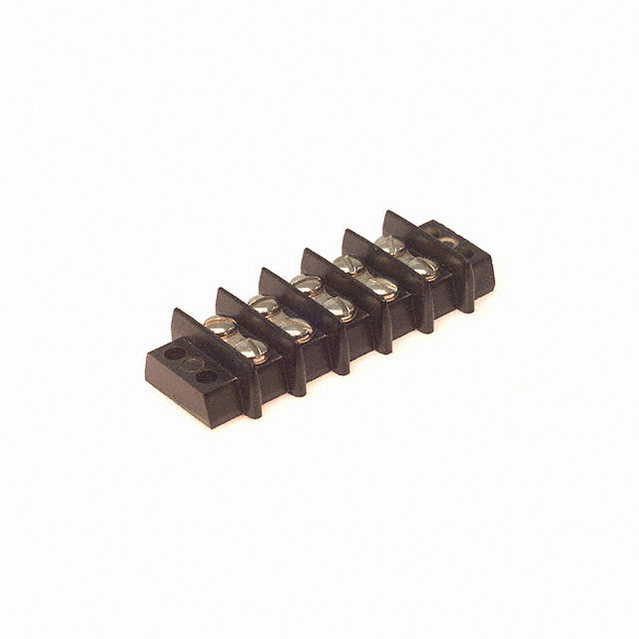

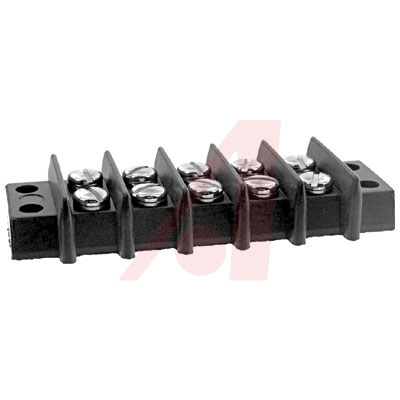

Series 142 Barrier Blocks, Double Row, 0.563 Density, BH Screw, #10 AWG Maximum Wire Size
* A wide variety of barrier blocks makes it possible to select the combination of mechanical and electrical characteristics that best meet the exact requirements of your application
* A wide selection of optional terminals and fanning strips permits the equipment designer tochoose the method of termination most suitable for his environmental specifications
Interposing barriers between terminals yield higher electrical ratings and provide additional protection against frayed wire shorting.
触点数 10
线规 14 AWG
触点电镀 Nickel
额定电流 20 A
排数 2
电路数 5
易燃性等级 UL 94 V-1
针脚数 5
安装角度 180 °
额定电流Max 20 A
工作温度Max 148 ℃
工作温度Min -48 ℃
额定电压Max 250 VAC
额定电压 250 V
安装方式 Panel
引脚间距 11.1 mm
长度 2.938 in
宽度 1.125 in
高度 0.5 in
引脚间距 11.1 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -48℃ ~ 148℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8536694050
