5023800600

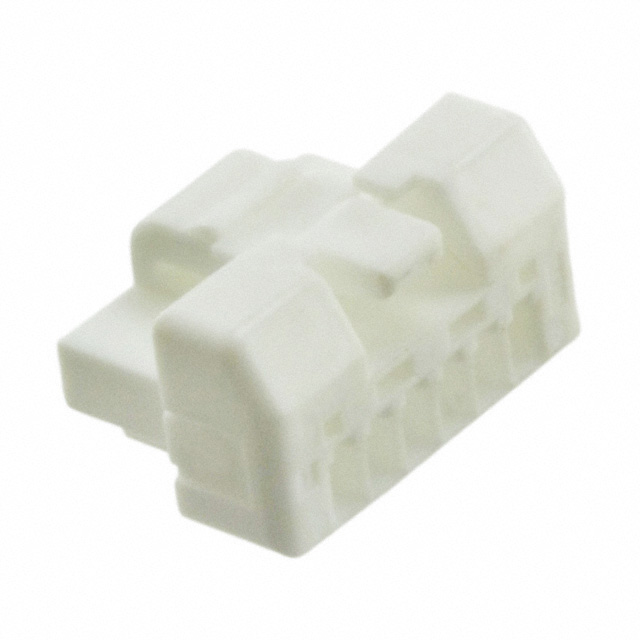

1.25毫米（ .049 “ ）间距CLIK -伴侣™线对板房，单列，锁扣， 6电路 1.25mm .049" Pitch CLIK-Mate™ Wire-to-Board Housing, Single Row, Positive Lock, 6 Circuits

6 Rectangular Connectors - Housings Plug Natural 0.049" 1.25mm

得捷:
CONN PLUG HSG 6POS 1.25MM

立创商城:
1.25mm 1x6P

艾睿:
Molex&s;s 5023800600 discrete wire housing provides a durable connection for discrete wires. This PL connector has 6 PL contacts. This is a 1-row connector. Its pitch is 1.25 mm. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 1 A/contact. Its wire is 26-28 AWG. This product is 10.6 mm long, 5.45 mm tall and 7.05 mm deep. 5023800600 is housed in white polybutylene terephthalate. This rectangle connector has an operating temperature of -40 to 105 °C.

TME:
Plug; wire-board; female; Clik-Mate; 1.25mm; PIN:6; w/o contacts
