5016452020

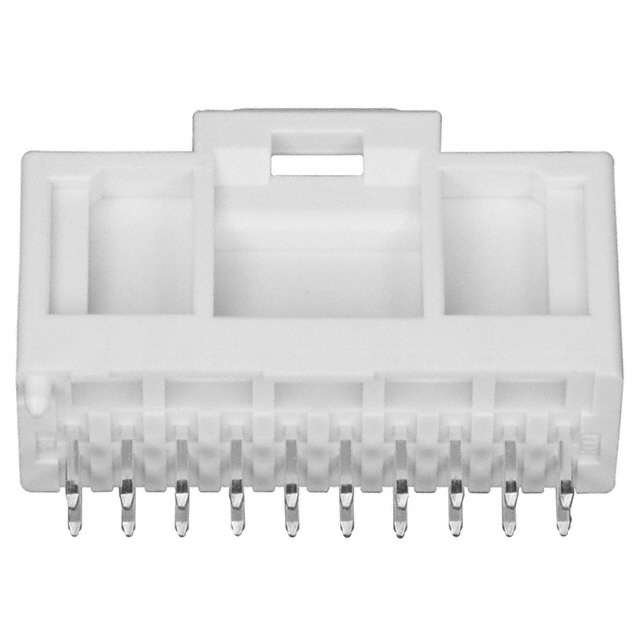

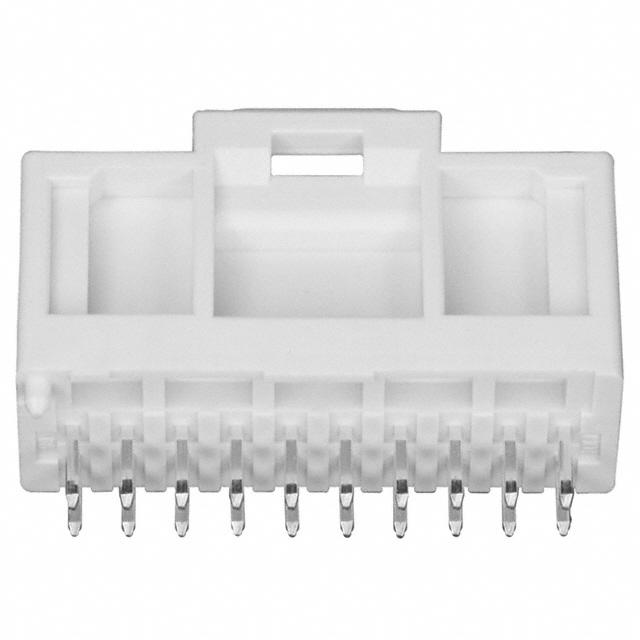

2.00毫米（ .079 “ ）间距iGrid游戏线对板头，双排，垂直，与PCB定位器， 20电路，无铅 2.00mm .079" Pitch iGrid Wire-to-Board Header, Dual Row, Vertical, with PCB Locator, 20 Circuits, Lead-free

针座 通孔 20 位置 0.079"（2.00mm）

欧时:
2.0 W/B DualGridPlugHsgAssy20Ckt

立创商城:
5016452020

得捷:
CONN HEADER VERT 20POS 2MM

艾睿:
Reduce safety concerns with this shrouded 5016452020 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 20 contacts that are made out of brass and plated with tin over copper. This is a 2-row connector. Its pitch is 2 mm. It has a maximum voltage rating of 250 VDC|250VAC. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 2 A/contact. This component will be shipped in tray format. This product is 22 mm long, 12 mm tall and 8.2 mm deep. 5016452020 is housed in natural nylon 6/6. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 20 POS 2mm Solder ST Thru-Hole Tray

Chip1Stop:
Conn Shrouded Header HDR 20 POS 2mm Solder ST Thru-Hole Tray

Verical:
Conn Shrouded Header 4 Sides HDR 20 POS 2mm Solder ST Top Entry Thru-Hole iGrid™ Tray
