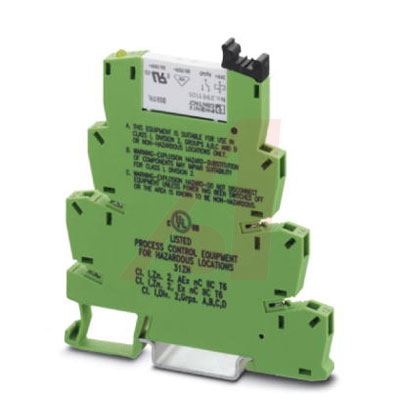

工业继电器 PLC-RSP-120UC/21C1D2
General Purpose Relay SPDT 1 Form C 120VAC/DC Coil DIN Rail
得捷:
RELAY GEN PURPOSE SPDT 6A 120V
贸泽:
工业继电器 PLC-RSP-120UC/21C1D2
艾睿:
Electromechanical Relay 110VDC 120VAC 36.6KOhm 6A SPDT 6.2x94x80mm DIN Rail Module Relay
Allied Electronics:
PLC-RSP-120UC/21 AEX
Verical:
Electromechanical Relay 110VDC 120VAC 36.6KOhm 6A SPDT6.2x94x80mm DIN Rail Module Relay
MASTER:
Electromechanical Relay 110VDC 120VAC 36.6KOhm 6A SPDT6.2x94x80mm DIN Rail Module Relay
Electro Sonic:
Electromechanical Relay 110VDC 120VAC 36.6KOhm 6A SPDT6.2x94x80mm DIN Rail Module Relay
额定电压DC 250 V
额定电压AC 250 V
触点额定电流 6 A
线圈电压 120VAC, 120VDC
线圈电流 3.5 mA
线圈电压AC 120 V
线圈电阻 36.6 KΩ
额定电流Max 6 A
线圈电压DC 110 V
额定功率Max 140 W
工作温度Max 60 ℃
工作温度Min -20 ℃
安装方式 DIN Rail
宽度 6.2 mm
高度 80 mm
触点材质 Silver Tin Oxide
工作温度 -20℃ ~ 60℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
