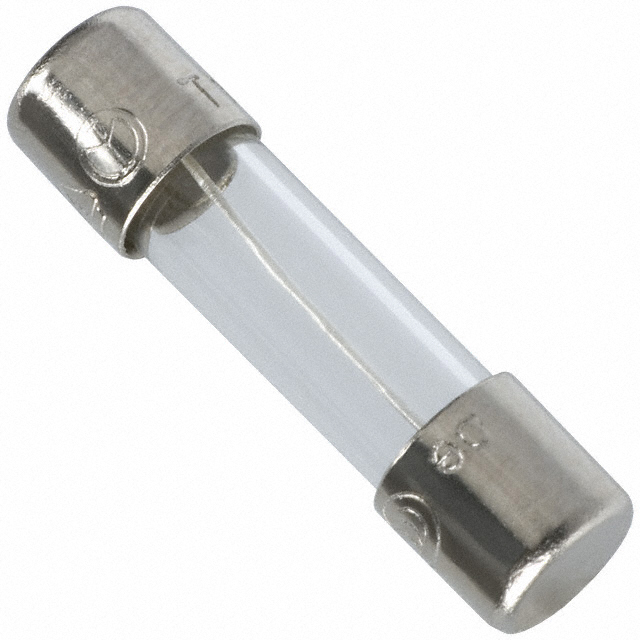

5ST 63-R图片4

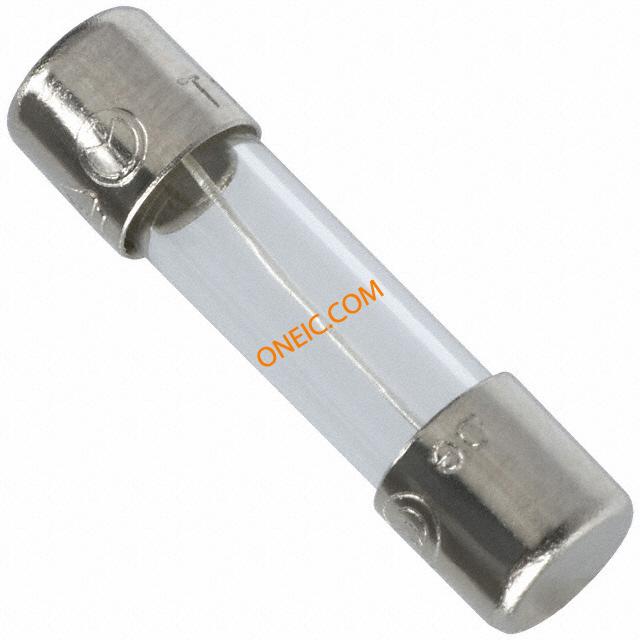

5ST 63-R图片5
5ST 63-R图片6
5ST 63-R图片7
5ST 63-R概述

Fuse Miniature 0.063A 250V Slow Blow 2Pin Cartridge Holder

63 mA 250 V AC 直流 管筒,玻璃 支座 5mm x 20mm


得捷:
FUSE GLASS 63MA 250VAC 5X20MM


艾睿:
Be protected by adding a miniature 5ST 63-R fuse developed by Bel Fuse. This device has a current rating of 0.063. Its maximum power dissipation is 0.28 W. This device has a maximum power dissipation of 0.28 W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 5ST 63-R fuse has a cartridge termination style. This product is 20 mm long with a diameter of 5.1 mm. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass.


安富利:
Fuse Miniature 0.063A 250V Slow Blow 2-Pin Cartridge Holder


Chip1Stop:
Fuse Miniature Slow Blow Acting 0.063A 250V Holder Cartridge 5 X 20mm Glass


Verical:
Fuse Miniature Slow Blow Acting 0.063A 250V Holder Cartridge 5 X 20mm Glass CCC/CE/CSA/SEMKO/VDE/cULus


Win Source:
FUSE GLASS 63MA 250VAC 5X20MM / 63 mA 250 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm


5ST 63-R中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

额定电流 0.063 A

耗散功率 0.28 W

电阻 19.5 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 0.28 W

额定电压 250 V

额定电压AC Max 250 V

封装参数

引脚数 2

封装 5mm x 20mm

外形尺寸

长度 20 mm

直径 5.10 mm

封装 5mm x 20mm

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

5ST 63-R引脚图与封装图
5ST 63-R引脚图

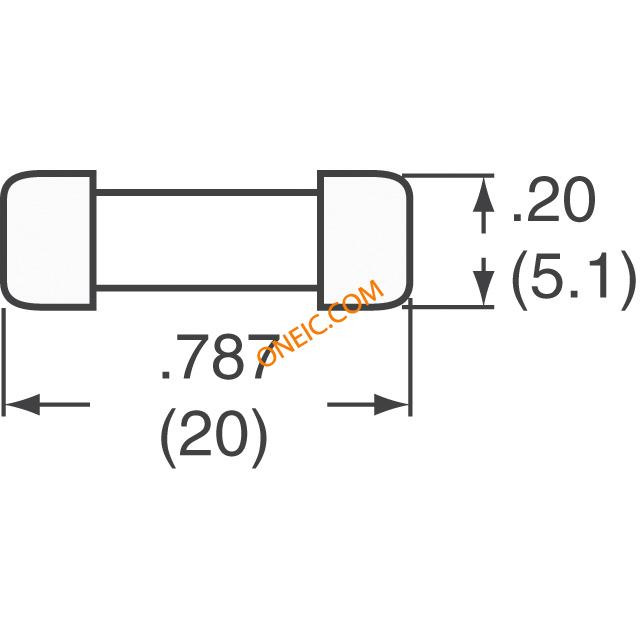

5ST 63-R封装图
5ST 63-R封装焊盘图
