5KP系列 108V 5kW 通孔 双向 瞬态电压抑制二极管 P-600
Do not risk expensive equipment and machinery from surges with this TVS diode from . This device"s maximum clamping voltage is 113 V and minimum breakdown voltage is 77.8 V. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 5000 W. Its test current is 5 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
额定电压DC 70.0 V
工作电压 70 V
额定功率 5.00 kW
击穿电压 86 V
电路数 1
耗散功率 5000 W
钳位电压 113 V
测试电流 5 mA
最大反向击穿电压 86 V
脉冲峰值功率 5000 W
最小反向击穿电压 77.8 V
击穿电压 77.8 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Through Hole
引脚数 2

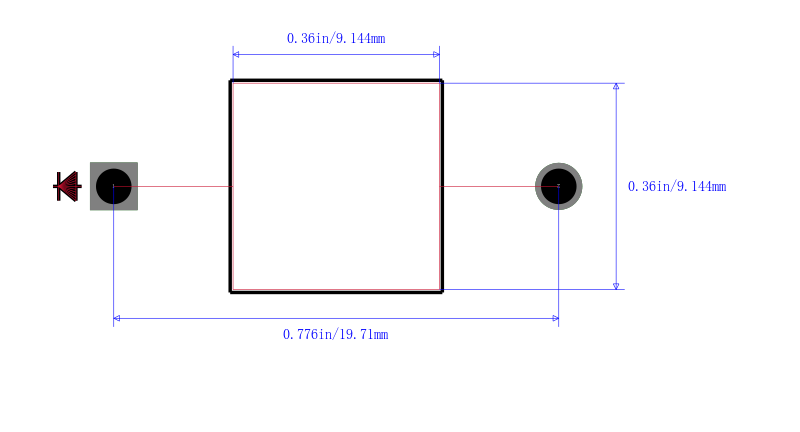

封装 P-600
长度 9.10 mm
直径 9.10 mm
封装 P-600
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
