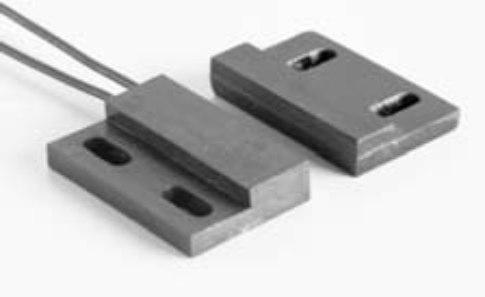

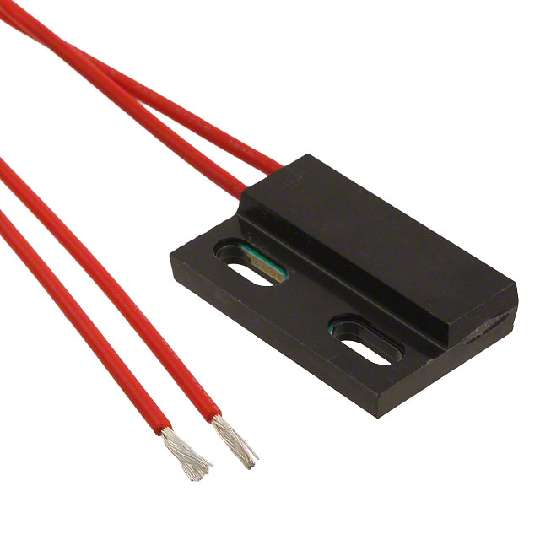

簧片传感器, 高温型, 法兰, 常开
The proximity sensor, developed by , is the perfect component to implement within motion detection and home security projects. This part has a minimum operating temperature of -40 °C and a maximum of 150 °C.
e络盟:
干簧开关, 59135系列, 法兰安装, 19 mm, SPST-常开, 10 W, 200 Vdc, 0.5 A, 17至23 AT
艾睿:
The 59135-1-S-02-A proximity sensor, developed by Littelfuse, is the perfect component to implement within motion detection and home security projects. This part has a minimum operating temperature of -40 °C and a maximum of 150 °C.
AMEYA360:
SENSOR MAGNETIC SPST/NO FLANGE
额定功率 10.0 W
供电电流 500 mA
开断电压 200 V
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Flange
引脚数 2
封装 Probe
长度 28.57 mm
宽度 19.05 mm
高度 6.35 mm
脚长度 300 mm
封装 Probe
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Not Recommended for New Design
包装方式 Bulk
制造应用 安全, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
