5406217-1

8位置 8触点 单端口 直角 通孔 RJ45 模块化插孔

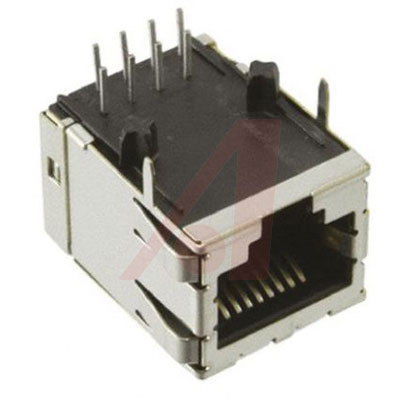

Cat 5e Single Port Shielded Right Angle PCB Mount Modular RJ45 Jack

得捷:
CONN MOD JACK 8P8C R/A SHIELDED

艾睿:
Use this modular rj-45 5406217-1 telephone and telecom connector from TE Connectivity to provide a secure connection for your high-speed network. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. Its pitch is 2.54 mm. It has a female type gender. It has a right angle body orientation. It has a maximum voltage rating of 150 VAC. This device has a maximum current rating of 1.5 A/contact. The component will be shipped in tray format. It uses the solder termination method. 5406217-1 is housed in black nylon. This product is 17.78 mm long, 14.48 mm tall and 21.34 mm deep. This part has an operating temperature of -40 to 80 °C.

Allied Electronics:
MJ ASSY, SG PSH W/RV PNL G TAB

Jameco:
Connector RJ-45 Female 8 Position 2.54mm Solder Right Angle Thru-Hole 8 Terminal 1 Port Tray Cat 5

安富利:
MJ ASSY,SG PSH W/RV PNL G TAB

Chip1Stop:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 5 Box/Tray

Verical:
Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Cat 5 Box/Tray

Newark:
# AMP - TE CONNECTIVITY  5406217-1  MJ ASSY,SG PSH W/RV PNL G TAB New

MASTER:
MODULAR JACK ASSEMBLY, SINGLE PORT, 8 POSITION, SHIELDED, REVERSE PANEL GROUND TABS, CATEGORY 5

Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked

Online Components:
MJ ASSY,SG PSH W/RV PNL G TAB

Electro Sonic:
MJ ASSY,SG PSH W/RV PNL G TAB
