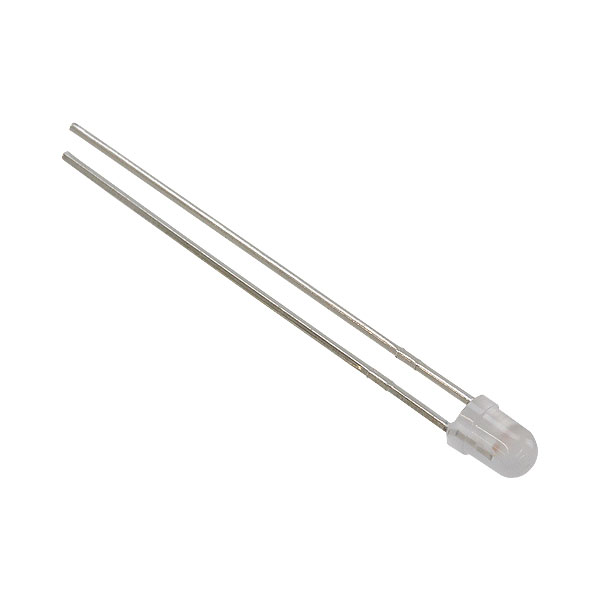

LED Bi-Color Green/Yellow 565nm/585nm 2Pin T-1 Bulk
绿色,黄色 569nm 绿色,586nm 黄色 指示 - 分立 2.1V 绿色,2.1V 黄色 径向
得捷:
LED GREEN/YELLOW DIFF 3MM T/H
艾睿:
LED Bi-Color Green/Yellow 565nm/585nm 2-Pin T-1 Bulk
额定电流 20.0 mA
正向电压 2.10 V
波长 569nm Green,586nm Yellow
发光强度 6.30 mcd
视角 80°
峰值波长 565nm Green,585nm Yellow
耗散功率 100/60mW
测试电流 20 mA
工作温度Max 100 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 T-1
高度 5.70 mm
封装 T-1
颜色 Green, Yellow
外观颜色 Green
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
