标准LED-SMD Green Water Clr 40mcd 570nm
** 598 Series s - 0805 Package**

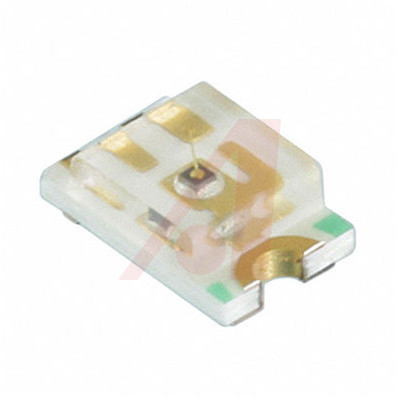

This 598 series, from Dialight, are in the industry standard 0805 package. They are single Color Micro LED® surface mount SMT LEDs. Available in a variety of Color options the 598 series have a water clear lens.
贸泽:
标准LED-SMD Green Water Clr 40mcd 570nm
艾睿:
LED Uni-Color Green 2-Pin Chip 08052012Metric Strip
Allied Electronics:
LED; 0805 SMT LED, GREEN, ALINGAP, WATER CLEAR LENS, 140 DEG VIEWING ANGLE
MASTER:
LED Uni-Color Green 2-Pin Chip 08052012Metric Strip
Electro Sonic:
LED Uni-Color Green 2-Pin Chip 08052012Metric Strip
正向电压 2 V
波长 570 nm
发光强度 20 mcd
视角 140°
耗散功率 60 mW
测试电流 20 mA
正向电压Max 2.4 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
耗散功率Max 60 mW
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.7 mm
封装公制 2012
封装 0805
颜色 Green
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541402000
