592-2323-313F

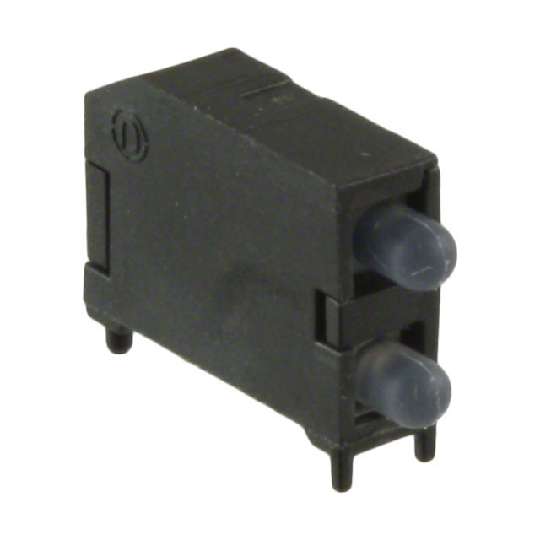

592-2323-313F图片1
592-2323-313F图片2
592-2323-313F图片3
592-2323-313F概述

发光二极管, 电路板, 2, 绿色, 4MCD

The 592 Bi-level Prism is available in color options including bi-color and tri-color. There are numerous color combinations that can be supplied in any of the two positions from top to bottom.


贸泽:
LED 电路板指示器 Dual Green 570nm 4mcd


e络盟:
发光二极管, 电路板, 2, 绿色, 4MCD


艾睿:
LED Bi-Level Uni-Color Green 572nm 4-Pin SMD T/R


Allied Electronics:
BI-LVL PRISM G-G 13"R SIL; Prism


Chip1Stop:
LED Bi-Level Uni-Color Green 572nm 4-Pin SMD T/R


Verical:
LED Bi-Level Uni-Color Green 572nm 4-Pin SMD T/R


Online Components:
LED Bi-Level Uni-Color Green 572nm 4-Pin SMD T/R


Electro Sonic:
LED Bi-Level Uni-Color Green 572nm 4-Pin SMD T/R


592-2323-313F中文资料参数规格
技术参数

正向电压 2 V

波长 570 nm

发光强度 4 mcd

峰值波长 572 nm

耗散功率 95 W

测试电流 10 mA

正向电流 10 mA

正向电压Max 2.5 V

正向电流Max 30 mA

工作温度Max 100 ℃

工作温度Min -40 ℃

耗散功率Max 95 mW

额定电压 2 V

封装参数

安装方式 Surface Mount

引脚数 4

封装 SMD

外形尺寸

宽度 14.22 mm

高度 11.56 mm

封装 SMD

物理参数

颜色 Green

工作温度 -40℃ ~ 100℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买592-2323-313F
型号: 592-2323-313F
制造商: Dialight
描述:发光二极管, 电路板, 2, 绿色, 4MCD
