5120.5070.0

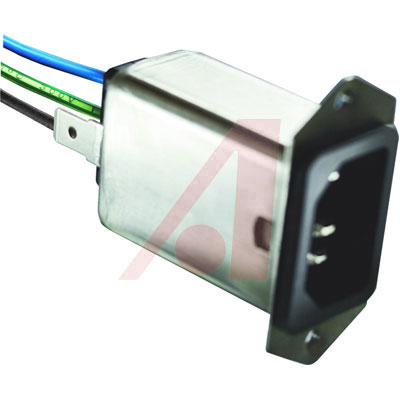

5120.5070.0图片1

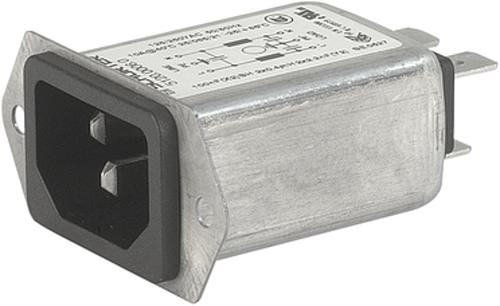

5120.5070.0图片2
5120.5070.0概述

Power Entry Module Filtered M 3POS 250VAC 1A RA 1Port

Series 5120 and 5123 for cost sensitive applications. “Cold” connections 70°C, screw or snap-in mounting; solder/quick-connect terminals 6.3 × 0.8 mm or wire leads. Metal flange for rear mounting provides optimal electrical shield contact and is provided with M3 threads for mounting. 5123 enhanced line filter provides very high attenuation — 6 dB better asymmetrical attenuation than standard filter Series 5120.


得捷:
PWR ENT RCPT IEC320-C14 PNL SLDR


艾睿:
Power Entry Module Filtered M 3 POS 250VAC 1A RA 1 Port


Allied Electronics:
PEMw/Filter; IEC; C14; 250VAC; 1A; RearPnl-screw/PCB-Snap; PCB/EarthPin; Std; IP40; PC1


安富利:
5120 APPLIANCE INLET FILTER 1A


Chip1Stop:
Power Entry Module Filtered M 3 POS 250VAC 1A RA 1 Port


Electro Sonic:
5120 APPLIANCE INLET FILTER 1A


5120.5070.0中文资料参数规格
技术参数

触点数 3

额定电流 1 A

针脚数 3

额定电流Max 1 A

工作温度Max 85 ℃

工作温度Min -25 ℃

额定电压Max 250 VAC

额定电压 250 VAC

额定电压AC Max 250 V

外形尺寸

长度 48.6 mm

宽度 54.5 mm

高度 24.6 mm

物理参数

工作温度 -25℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买5120.5070.0
型号: 5120.5070.0
制造商: Schurter
描述:Power Entry Module Filtered M 3POS 250VAC 1A RA 1Port
