5962-9061601LA概述

触发器 10-Bit Bus Interface Flip-Flops With 3-State Outputs 24-CDIP -55 to 125

Element Bit per Element Output


立创商城:
5962-9061601LA


得捷:
SN54ALS29821 10-BIT BUS INTERFAC


贸泽:
触发器 10-Bit Bus Interface Flip-Flops With 3-State Outputs 24-CDIP -55 to 125


艾睿:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 24-Pin CDIP Tube


安富利:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 24-Pin CDIP Tube


Chip1Stop:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 24-Pin CDIP Tube


Verical:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 24-Pin CDIP Tube


罗切斯特:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 24-Pin CDIP Tube


5962-9061601LA中文资料参数规格
技术参数

电源电压DC 4.75V ~ 5.25V

输出接口数 10

电路数 1

位数 10

电压波节 5.00 V

静态电流 80 mA

输入数 10

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚数 24

封装 CDIP-24

外形尺寸

长度 32 mm

宽度 6.92 mm

高度 4.7 mm

封装 CDIP-24

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

5962-9061601LA引脚图与封装图

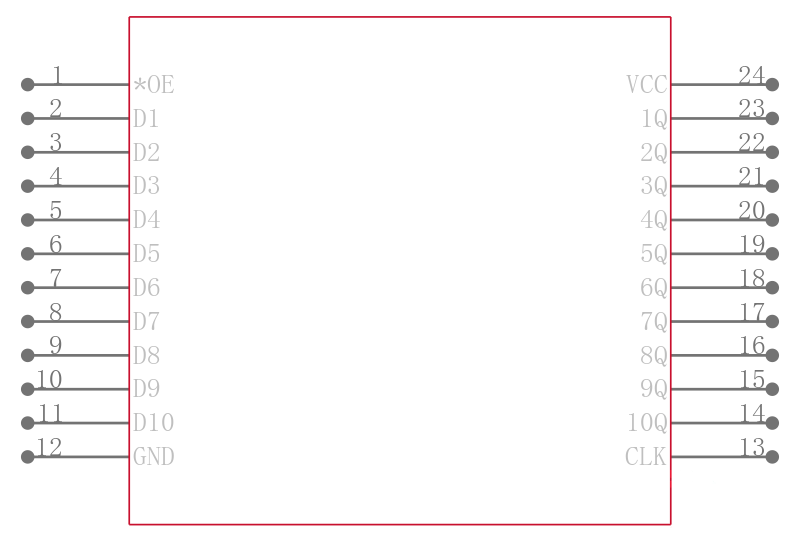

5962-9061601LA引脚图
5962-9061601LA封装图

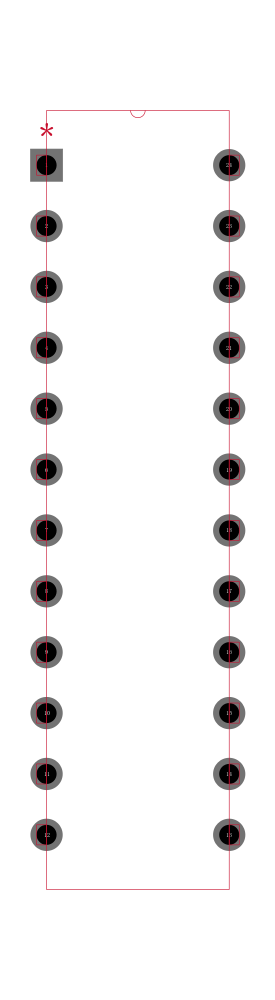

5962-9061601LA封装焊盘图
在线购买5962-9061601LA
型号: 5962-9061601LA
制造商: TI 德州仪器
描述:触发器 10-Bit Bus Interface Flip-Flops With 3-State Outputs 24-CDIP -55 to 125
