5046184010

板至板连接,40触点,插座,0.35mm,表面安装,2排 编带

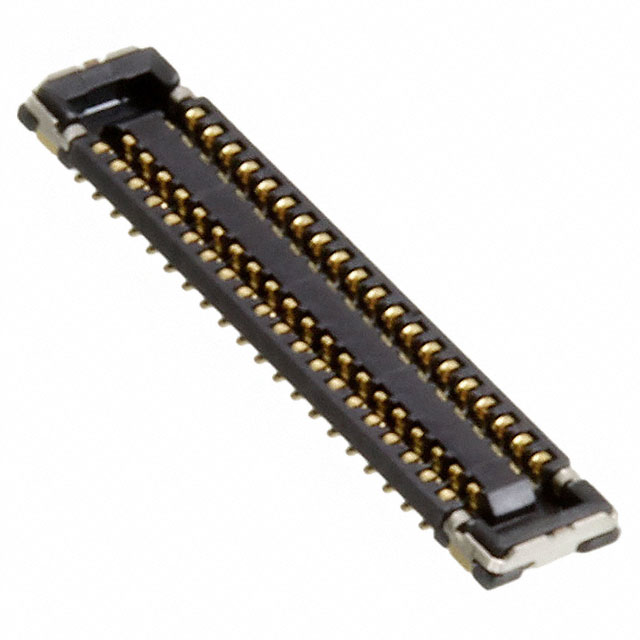

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

得捷:
CONN RCPT 40POS SMD GOLD

立创商城:
PIN：40 间距0.35mm 立贴

艾睿:
Look no further than the board to board 5046184010 header connector from Molex, a great tool to use when board-to-board interconnects is required. This RCP connector&s;s 40 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 50 V. Its pitch is 0.35 mm. It has a receptacle type gender. It has a straight body orientation. This device has a maximum current rating of 0.3 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This connector has an operating temperature of -40 to 85 °C. It uses the solder termination method. 5046184010 is housed in black liquid crystal polymer. This product is 9.15 mm long, 0.6 mm tall and 2 mm deep.

安富利:
0.35mm Pitch SlimStack SSB6 Board-to-Board Receptacle, Surface Mount, Dual Row, Vertical, 0.60mm Stacking Height, 2.00mm Width, 30 Circuits

Verical:
Conn Board to Board RCP 40 POS 0.35mm Solder ST SMD SlimStack™ T/R
