5016451020

2.00毫米（ .079 “ ）间距iGrid游戏线对板头，双排，垂直，与PCB定位器， 10电路，无铅 2.00mm .079" Pitch iGrid Wire-to-Board Header, Dual Row, Vertical, with PCB Locator, 10 Circuits, Lead-free

Connector Header Through Hole 10 position 0.079" 2.00mm

得捷:
CONN HEADER VERT 10POS 2MM

欧时:
2.0 W/B Dual Grid Plug HsgAssy10Ckt

立创商城:
2mm 2x5P 直插

艾睿:

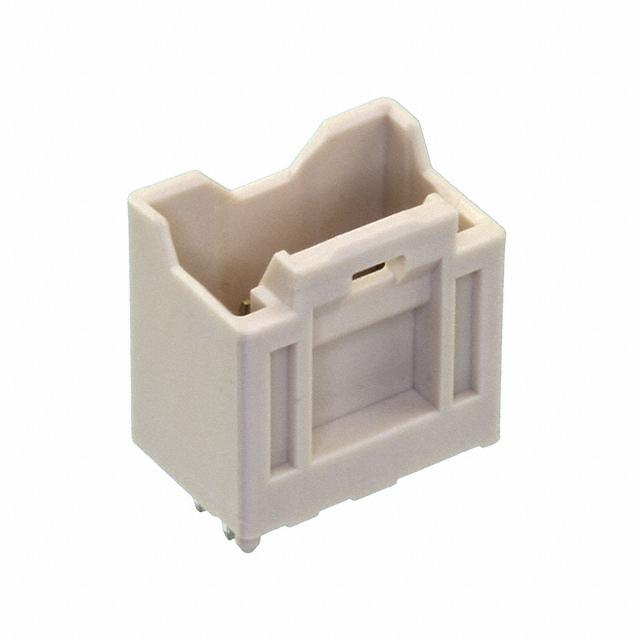

This shrouded 5016451020 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 10 contacts that are made out of brass and plated with tin over copper. This is a 2-row connector. It has a header type gender. Its pitch is 2 mm. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. This device has a maximum current rating of 2 A/contact. The component will be shipped in tray format. This product is 12 mm long, 12 mm tall and 8.2 mm deep. It uses the solder termination method. 5016451020 is housed in natural nylon 6/6. This connector has an operating temperature of -40 to 105 °C.

安富利:
Conn Shrouded Header HDR 10 POS 2mm Solder ST Thru-Hole Tray

Verical:
Conn Shrouded Header 4 Sides HDR 10 POS 2mm Solder ST Thru-Hole iGrid™ Tray
