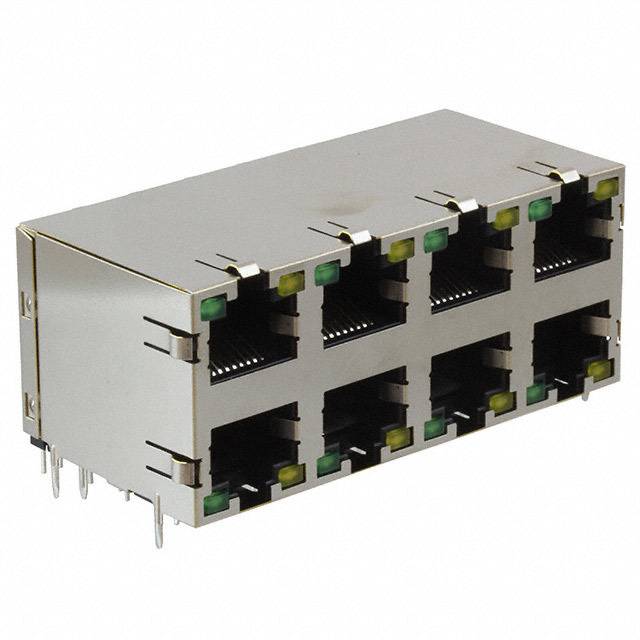

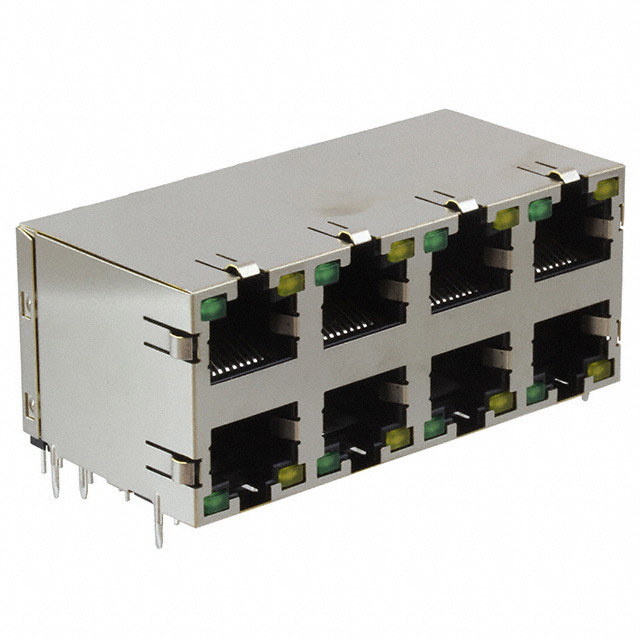

8位置 8触点 RJ45 单端口 直角 通孔 模块化插孔
The modular characteristics of this rj-45 telephone and telecom connector from make it a common choice for Ethernet network communication. This F connector"s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a female type gender. It has a right angle body orientation. This connector has 8 ports. It uses the solder termination method. This product is 67.95 mm long, 27.31 mm tall and 31.1 mm deep. 6339082-3 is housed in black polybutylene terephthalate.
触点数 64
触点电镀 Gold, Tin over Nickel
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 8
屏蔽 Yes
额定电流Max 1.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
高度 27.31 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
外壳材质 Polyester
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
