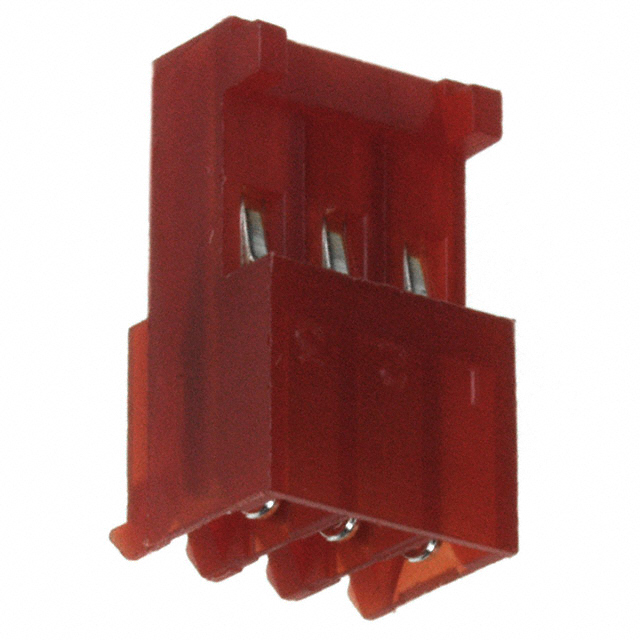

644042-3

Conn IDC Connector F 3POS 2.54mm IDT RA Cable Mount Bag

03P MTA100 CONN ASSY 30AU

Product Highlights

MTA-100 Connectors

Number of Positions = 3

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application

得捷:
CONN RCPT 3POS IDC 22AWG GOLD

贸泽:
Headers & Wire Housings RECP 3P MTA-100 5000

艾睿:
Mount this idc connector 644042-3 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This F connector&s;s 3 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This is a 1-row connector. It has a female type gender. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. 644042-3 is housed in red nylon. It uses the idt termination method. This product is 7.62 mm long, 6.99 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  644042-3  03P MTA100 CONN ASSY 30AU New

MASTER:
MTA .100 CONNECTOR ASSEMBLY 22 AWG, STANDARD

Electro Sonic:
03P MTA100 CONN ASSY 30AU
