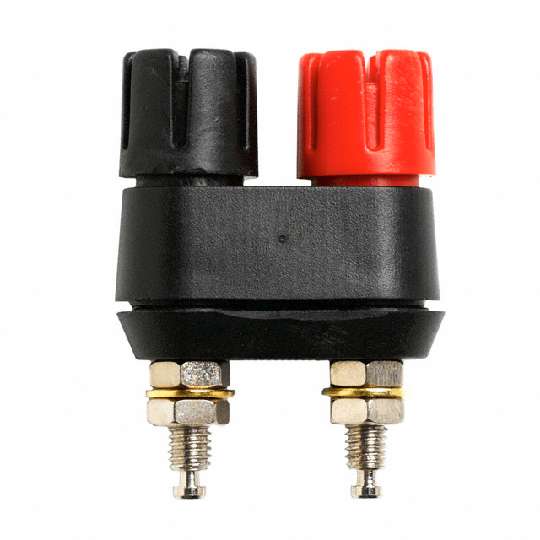

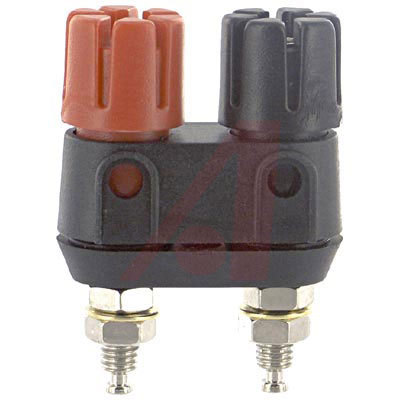

POMONA 6884 接线柱, 双路, 30A, 塔式, 黑色/红色
The is a Dual Binding Posts with raised base use as an ideal interconnect, 5-way binding post with 0.154-inch cross-hole that accepts up to 12AWG wire and standard banana plugs. Posts are spaced at the standard 3/4-inch spacing to mate to dual banana plugs. Nickel-plated brass posts, insulators and base are made of nylon.
线规 12.0 AWG
触点电镀 Nickel
额定电压DC 500 V
额定电流 30 A
额定电流Max 30 A
工作温度Max 70 ℃
额定电压 500 V
安装方式 Panel, Screw
封装 -
长度 2.187 in
封装 -
颜色 Black, Red
触点材质 Brass
绝缘材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 测试与测量, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
