614NGL

EBM PAPST  614NGL  轴流风扇, 紧凑, 标准或基础速度, 管套, 600NG系列, 24 VDC, 60 mm, 25 mm, 12.4 cu.ft/min, 0.35 m³/min

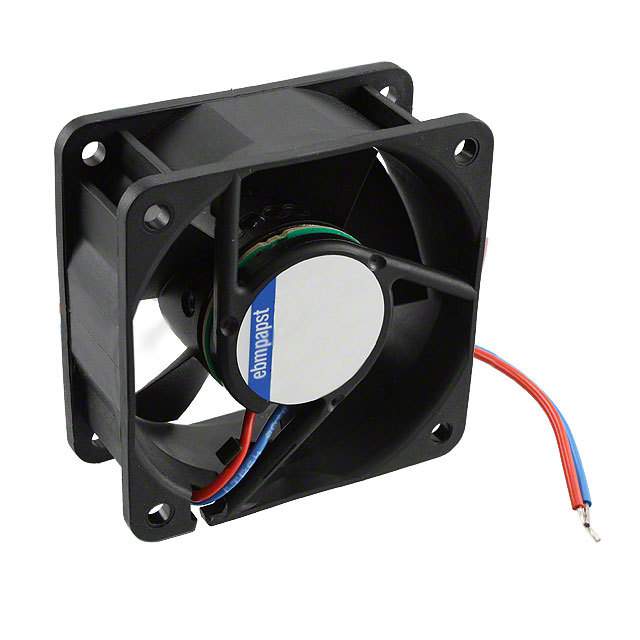

The is a 24VDC standard or basic low speed Axial Fan with speed signal, Go/No-go alarm, moisture protection Sintec sleeve bearing and wire leaded power connection. Fibreglass-reinforced plastic PBT housing and fibreglass-reinforced plastic PA impeller. Right direction of rotation looking at rotor, air exhaust over bars direction of air flow with single strands 22AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

2500RPM Speed rating

.

1W Rated power

.

-20 to 70°C Maximum ambient temperature range

.

Electronic protection against reverse polarity

.

IP54/IP68 Protection rating

.

Protected against reverse polarity and locking
