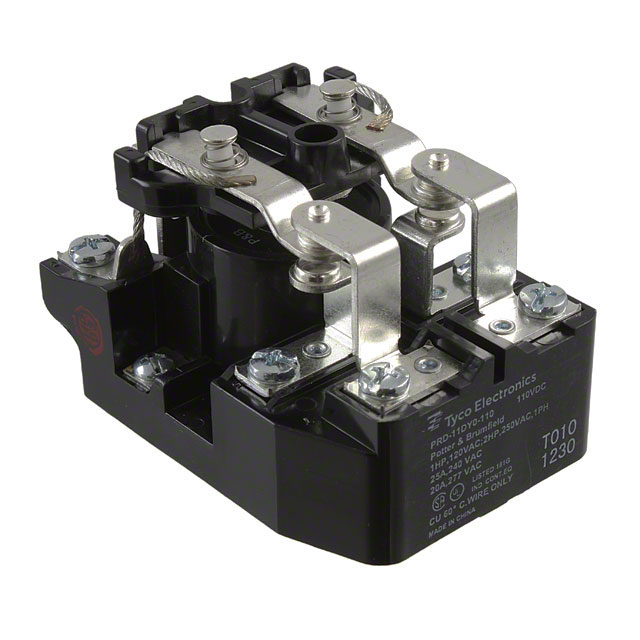

Power Relay 110VDC 25A DPDT 85.73mm 63.8mm 63.5mm
Electromechanical Relay 110VDC 6.05KOhm 25A DPDT 85.73x63.8x63.5mm Power Relay
艾睿:
Power Relay 110VDC 25A DPDT85.73x63.8x63.5mm
Verical:
Electromechanical Relay 110VDC 6.05KOhm 25A DPDT 85.73x63.8x63.5mm Power Relay
MASTER:
Electromechanical Relay 110VDC 6.05KOhm 25A DPDT 85.73x63.8x63.5mm Power Relay
Powell:
EMG Contactors and Solenoids
Online Components:
Electromechanical Relay 110VDC 6.05KOhm 25A DPDT 85.73x63.8x63.5mm Power Relay
Electro Sonic:
Electromechanical Relay 110VDC 6.05KOhm 25A DPDT 85.73x63.8x63.5mm Power Relay
额定电压AC 240 V
绝缘电阻 100 MΩ
触点额定电流 25 A
线圈电压 110 VDC
线圈电流 18.2 mA
线圈电阻 6.05 KΩ
额定电流Max 25 A
线圈电压DC 110 V
开关电流Max 25 A
工作温度Max 80 ℃
工作温度Min -55 ℃
额定电压AC Max 240 V
接触电阻Max 75 mΩ
安装方式 Screw Terminals, Chassis
封装 Dust Cover
高度 63.5 mm
封装 Dust Cover
触点材质 Silver
工作温度 -55℃ ~ 80℃
产品生命周期 Active
包装方式 Tray, Box
RoHS标准 RoHS Compliant
ECCN代码 EAR99
HTS代码 8536490075
