Conn Shrouded Header HDR 40POS 2.54mm Solder ST Thru-Hole
40 MODII HDR DRST SHRD .100CL
Product Highlights
Header
Header Type = Shrouded
Number of Rows = Dual
Number of Positions = 40
Mating Post Length = 8.08 mm
得捷:
CONN HEADER VERT 40POS 2.54MM
贸泽:
Headers & Wire Housings SHROUDED VER DUAL 40 detent windows
艾睿:

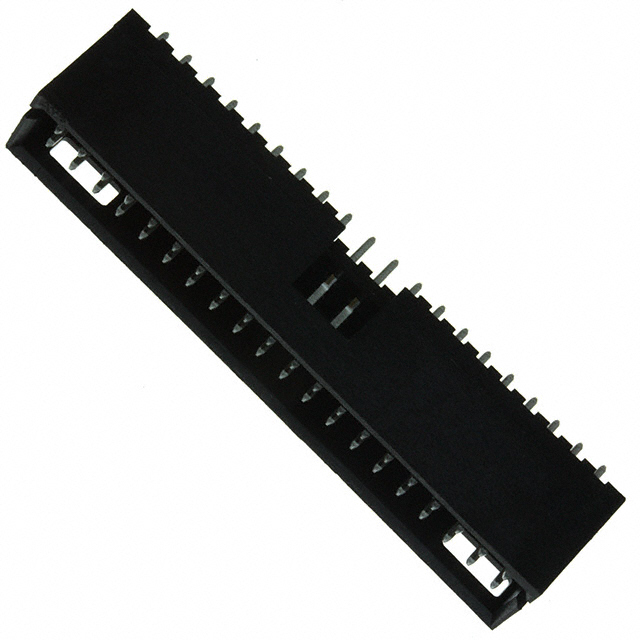

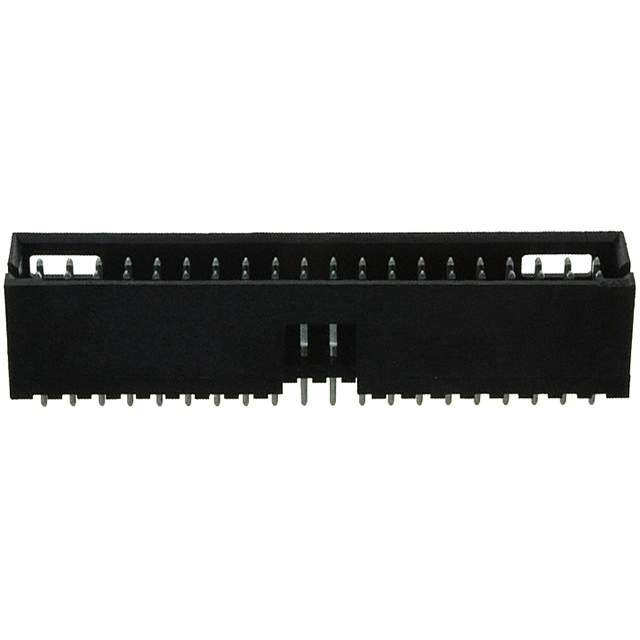

Support physical configuration options for jumper posts by mounting this shrouded 6-87589-6 header connector from TE Connectivity. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. This component will be shipped in tray format. This connector has an operating temperature of -55 to 105 °C. 6-87589-6 is housed in black nylon. This product is 53.64 mm long, 11.17 mm tall and 10.16 mm deep. It uses the solder termination method.
安富利:
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole
Chip1Stop:
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Shrouded Header 4 Sides M 40 POS 2.54mm Solder ST Top Entry Thru-Hole Tray
MASTER:
HEADER ASEMBLY MOD II, .100 C/L .025 SQUARE POST, WITH DETENT
Powell:
.100 inch AMPMODU Headers
Online Components:
40 MODII HDR DRST SHRD .100CL
Electro Sonic:
40 MODII HDR DRST SHRD .100CL
触点数 40
极性 Male
触点电镀 Tin, Tin over Nickel
额定电流 3 A
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 40
安装角度 180 °
额定电流Max 3A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚间距 2.54 mm
长度 53.6 mm
宽度 11.2 mm
高度 11.17 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tray
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
