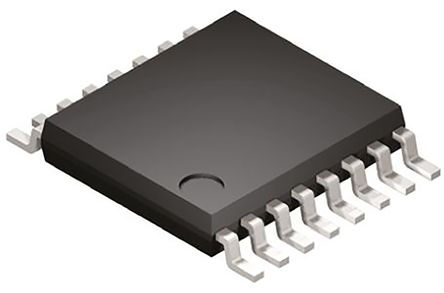

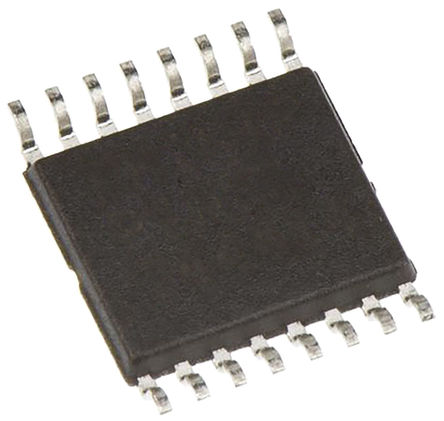

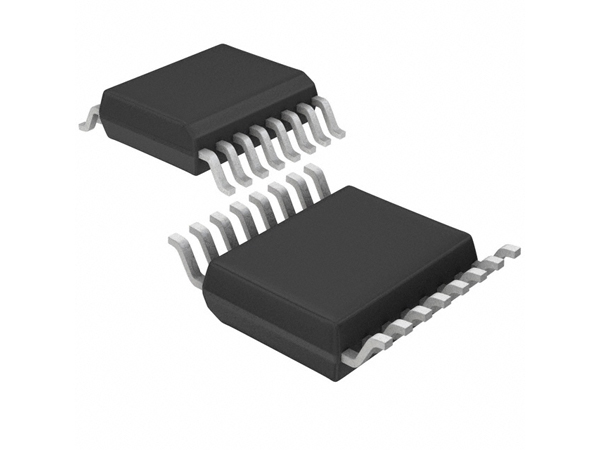

FAIRCHILD SEMICONDUCTOR 74VHC595MTC 移位寄存器, HC系列, 串行至并行, 1元件, TSSOP, 16 引脚, 2 V, 5.5 V
Add to the complexity of a system by implementing this counter shift register developed by Semiconductor. With a 3-state output, this is power management at its best. This counter shift register has an operating temperature range of -40 °C to 85 °C. This product comes in rail packaging to keep individual parts separated and protected. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V min
电路数 1
针脚数 16
位数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-16
重量 0.0784714852 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Rail
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
