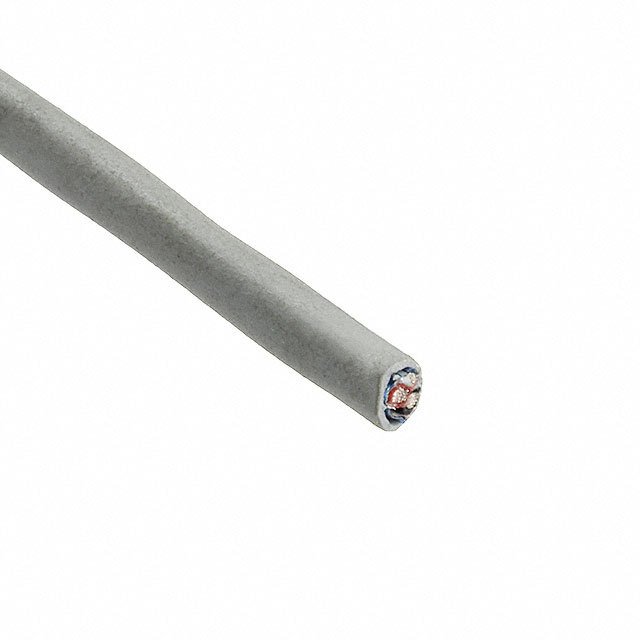

ALPHA WIRE 78142 SL005 Multiconductor Shielded Cable, EcoCable® Mini, Slate, 2Conductor, 20AWG, 0.616mm², 100Ft
2 芯 多芯 线缆 石板色 20AWG 箔 100.0"（30.5m）
欧时:
20 AWG EcoMini 2 core 30m
得捷:
CABLE 2COND 20AWG SHLD 100"
贸泽:
Multi-Conductor Cables 20AWG 2C SHIELD 100FT SPOOL SLATE
艾睿:
Multi-Conductor Cable Tape Modified Polyphenylene Ether/Polyethylene 2Conductors 20AWG 3.88mm 300VAC Slate 30.48m Spool
Allied Electronics:
Cable, Multiconductor; 20AWG; 19x32; TC; 2C; 300V; Foil shld; MPPE ins, jkt; Slate
Newark:
# ALPHA WIRE 78142 SL005 Multiconductor Shielded Cable, EcoCable® Mini, Slate, 2 Conductor, 20 AWG, 0.616 mm², 100 ft
线规 20 AWG
额定电压DC 300 V
芯数 2
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
额定电压 300 V
长度 30.5 m
颜色 Slate
工作温度 -40℃ ~ 80℃
导体材质 Tinned Copper
产品生命周期 Active
包装方式 Coil
制造应用 Lighting, Communications & Networking, Test & Measurement, Medical, Sensing & Instrumentation, Maintenance & Repair, System Monitoring, -, Consumer Electronics, Audio, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
