八路总线收发器与3态输出 OCTAL BUS TRANSCEIVER WITH 3-STATE OUTPUTS
The octal bus transceiver is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.
The device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control DIR input. The output-enable input can be used to disable the device so that the buses are effectively isolated.
The 74ACT11245 is characterized for operation from -40°C to 85°C.
电源电压DC 4.50V ~ 5.50V
输出接口数 8
电路数 8
通道数 8
位数 8
传送延迟时间 10.0 ns
电压波节 5.00 V
耗散功率 700 mW
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 700 mW
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 24

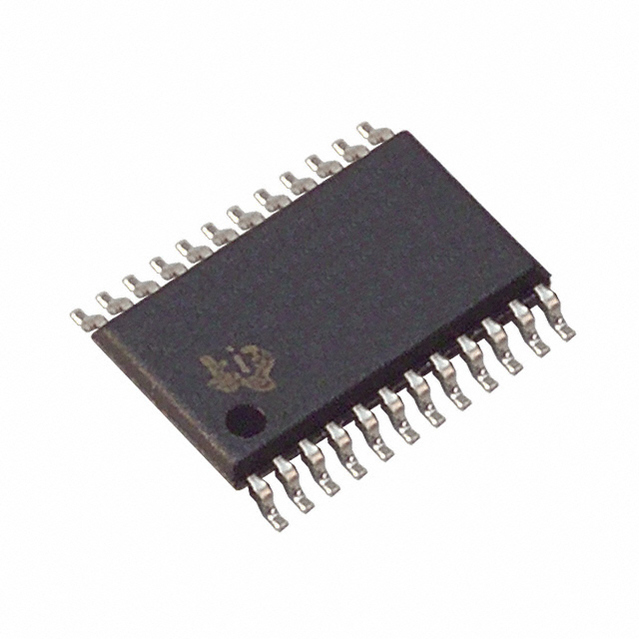

封装 TSSOP-24
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
