74AC16652DLR

16位总线收发器和寄存器具有三态输出 16-BIT BUS TRANSCEIVERS AND REGISTERS WITH 3-STATE OUTPUTS

description

The ’AC16652 are 16-bit bus transceivers that consist of D-type flip-flops and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. They can be used as two 8-bit transceivers or one 16-bit transceiver.

• Members of the Texas Instruments Widebu™ Family

• Independent Registers and Enables for A and B Buses

• Multiplexed Real-Time and Stored Data

• Flow-Through Architecture Optimizes PCB Layout

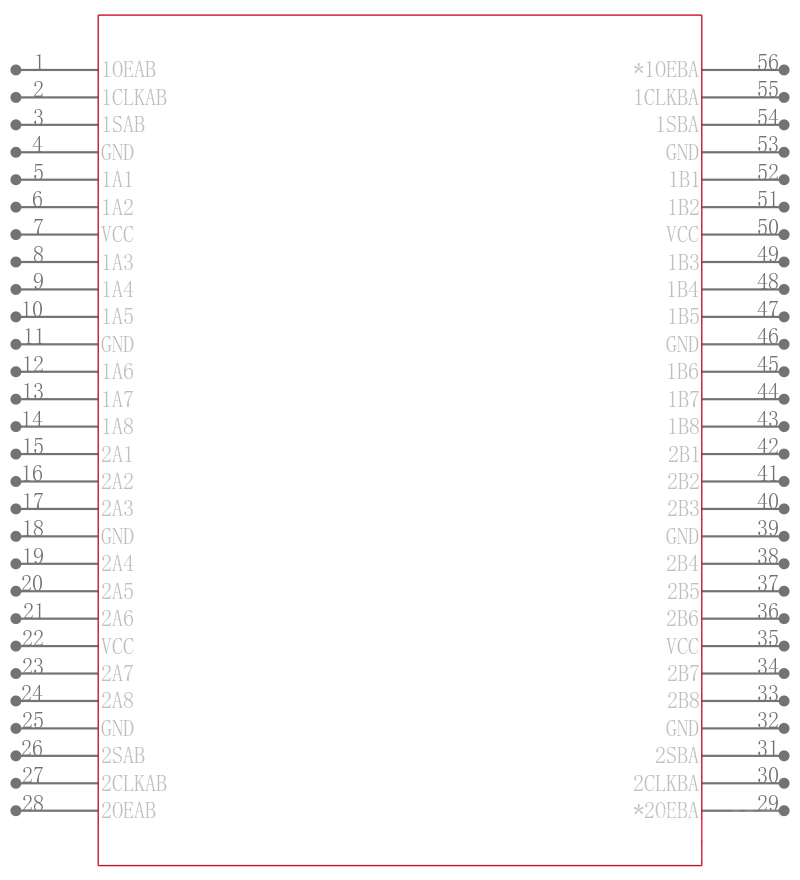

• Distributed VCC and GND Pin Configurations Minimize High-Speed Switching Noise

• EPIC  Enhanced-Performance Implanted CMOS 1-µm Process

• 500-mA Typical Latch-Up Immunity at 125°C

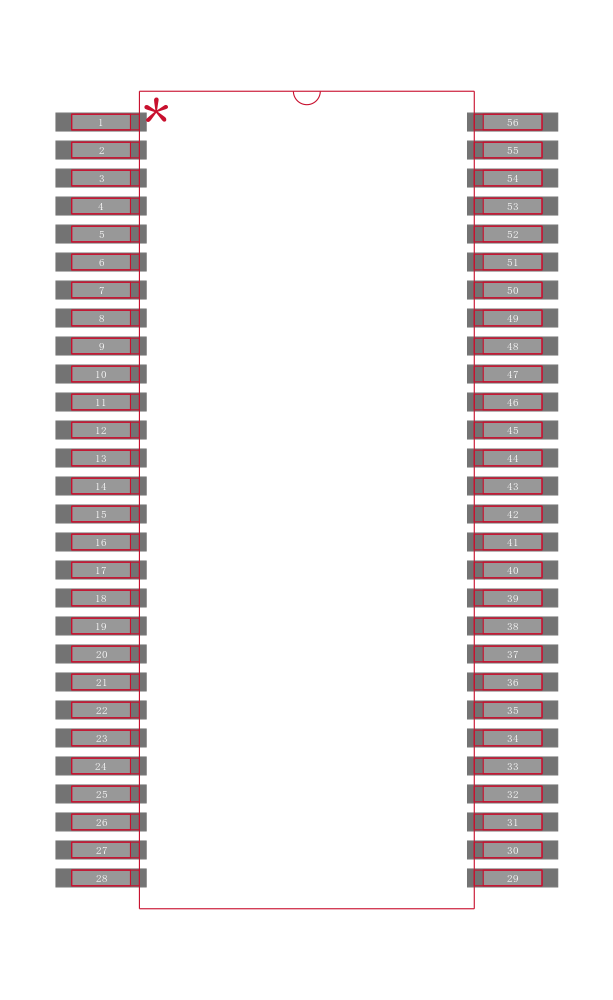

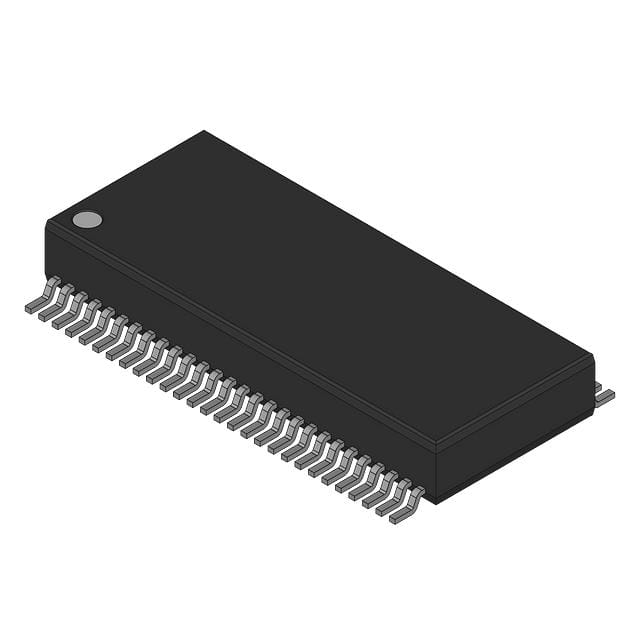

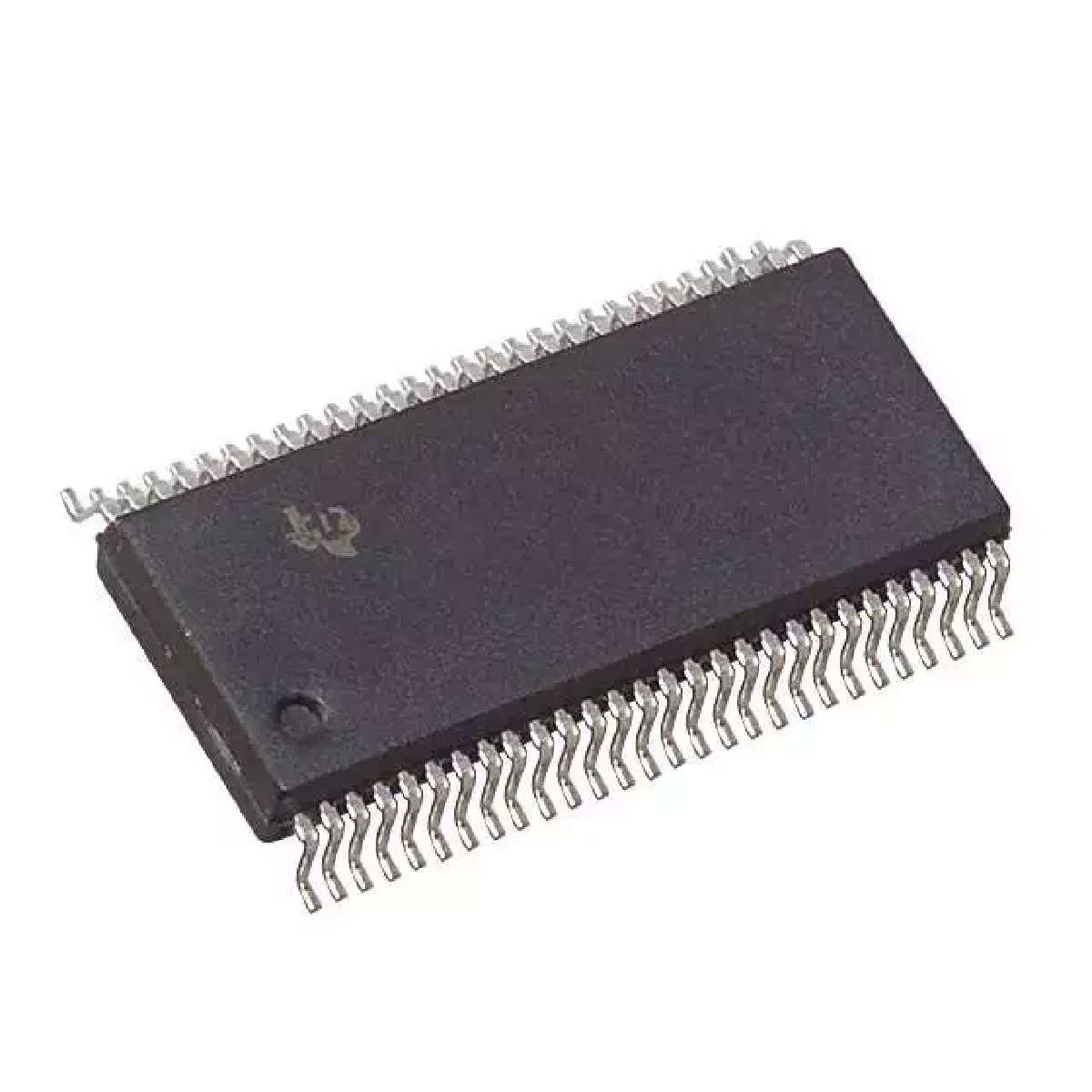

• Package Options Include Plastic 300-mil

   Shrink Small-Outline DL Packages Using

   25-mil Center-to-Center Pin Spacings and

   380-mil Fine-Pitch Ceramic Flat WD

   Packages Using 25-mil Center-to-Center

   Pin Spacings
