76PSB09ST

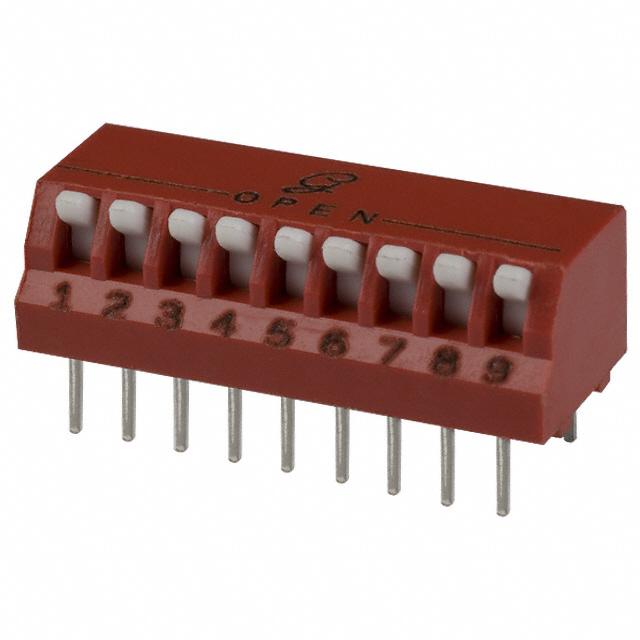

76PSB09ST图片1
76PSB09ST图片2
76PSB09ST图片3
76PSB09ST图片4
76PSB09ST概述

DIP 开关/ SIP 开关 DIP Switch SPST up is off 9 Pos

Dip Switch SPST 9 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC


得捷:
SWITCH PIANO DIP SPST 150MA 30V


贸泽:
DIP 开关/ SIP 开关 DIP Switch SPST up is off 9 Pos


艾睿:
Switch DIP ON OFF SPST 9 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube


Chip1Stop:
Switch DIP ON OFF SPST 9 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube


Newark:
DIP Switch, SPST, side actuated up is off, 9 position, tape seal, RoHS Compliant


Electro Sonic:
Switch DIP ON OFF SPST 9 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube


76PSB09ST中文资料参数规格
技术参数

触点类型 SPST

针脚数 9

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 30 VDC

封装参数

安装方式 Through Hole

封装 DIP

引脚间距 2.54 mm

外形尺寸

长度 24.89 mm

宽度 9.65 mm

高度 7.65 mm

封装 DIP

引脚间距 2.54 mm

物理参数

触点材质 Copper Alloy

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Obsolete

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买76PSB09ST
型号: 76PSB09ST
制造商: Grayhill
描述:DIP 开关/ SIP 开关 DIP Switch SPST up is off 9 Pos
