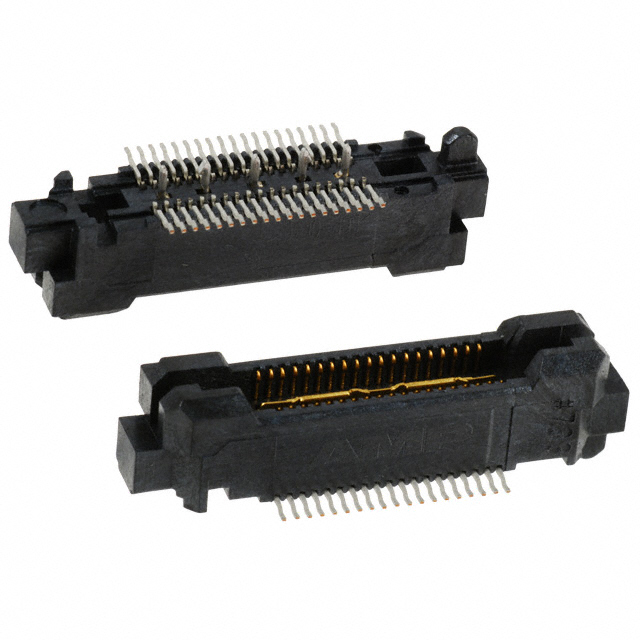

Conn High Speed Fine Pitch Connector PL 38POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube
MICT,260PLUG,38,ASSY,.025,REC
Product Highlights
Connector
Plug
Mated Stack Height Vertical = 6.60 mm, 15.62 mm
Number of Positions = 38
Vertical Mount Angle
得捷:
CONN PLUG 38POS SMD GOLD
安富利:
Conn High Speed Fine Pitch Connector PL 38 POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube
Verical:
Conn High Speed Fine Pitch Connector PL 1Power/38Signal POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Box/Tube
Powell:
MICTOR Products
Online Components:
MICT,260PLUG,38,ASSY,.025,REC
Electro Sonic:
MICT,260PLUG,38,ASSY,.025,REC
触点数 38
极性 Male
触点电镀 Tin Lead
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 38
额定电流Max 11.5A/触头
额定电压Max 30 VAC
接触电阻Max 10 mΩ
安装方式 Surface Mount
引脚间距 635 µm
长度 25.4 mm
宽度 5.28 mm
高度 6.38 mm
引脚间距 635 µm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
