C & K COMPONENTS 7201K2ZQE 拨动开关, 7000系列, 不发光, DPDT, 开-无-开, 面板, 5 A

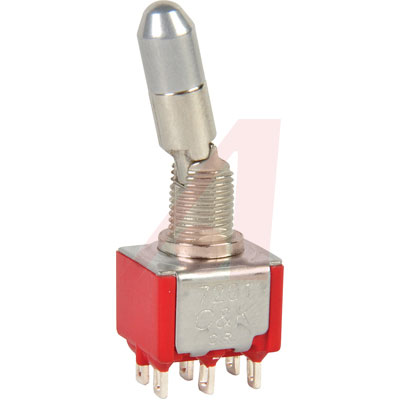

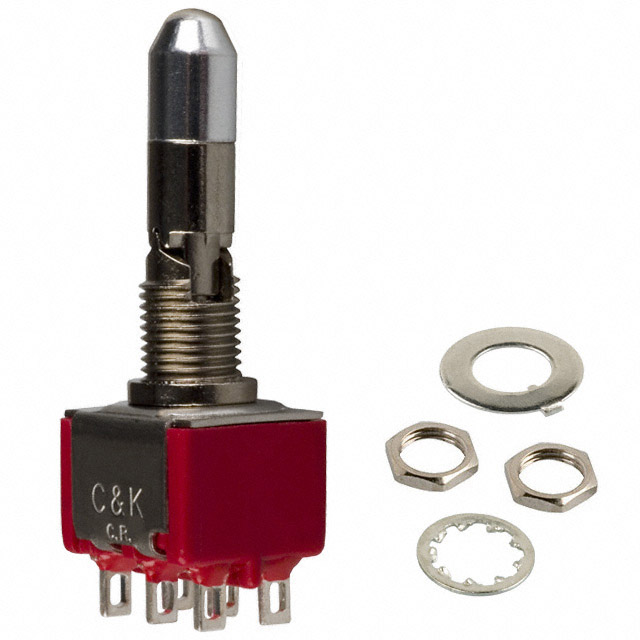

The is a double-pole double-throw miniature Toggle Switch with solder lug terminations, silver contact, On-none-On function, 0.704-inch high locking lever actuator, stainless steel housing, glass filled nylon 6/6, flame-retardant, heat stabilized or Diallyl phthalate DAP UL94V-0 case, chrome-plated brass actuator and epoxy terminal seal compatible with bottom wash cleaning.
触点电镀 Silver
额定电流 5 A
排数 2
触点类型 DPDT
针脚数 3
绝缘 Epoxy
额定电流Max 5A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 250 VAC
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Lug, PCB
封装 -
长度 12.7 mm
高度 39.22 mm
封装 -
触点材质 Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 通信与网络, 医用, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
