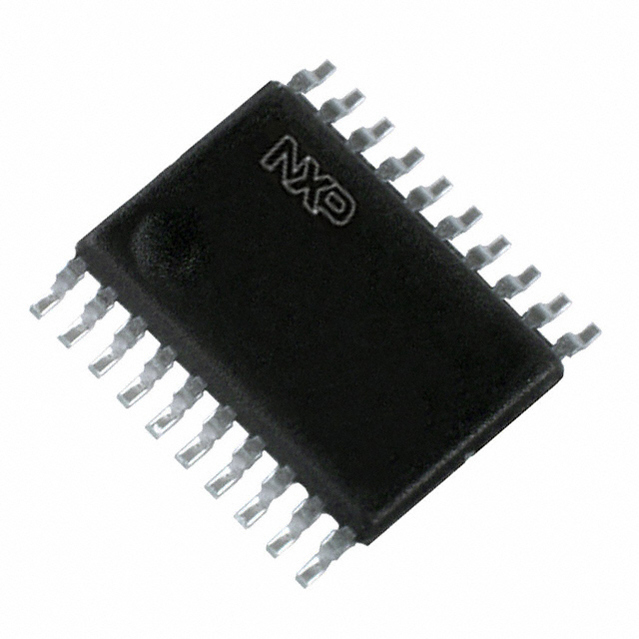

74LVC244APW,118

八频缓冲器/线路驱动器三态

The is an octal non-inverting Buffer/Line Driver with 3-state outputs. The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Schmitt-trigger action at all inputs makes the circuit highly tolerant for slower input rise and fall times. Inputs can be driven from either 3.3/5V devices. In 3-state operation, outputs can handle 5V. These features allow the use of this device as translators in a mixed 3.3 and 5V environment. The 74LVCH244A bus hold on data inputs eliminates the need for external pull-up resistors to hold unused inputs.

.

CMOS low-power consumption

.

Direct interface with TTL levels

.

Complies with JEDEC standard

.

5V Tolerant inputs/outputs for interfacing with 5V logic

.

High-impedance when VCC = 0V

.

Inputs accept voltages up to 5.5V
