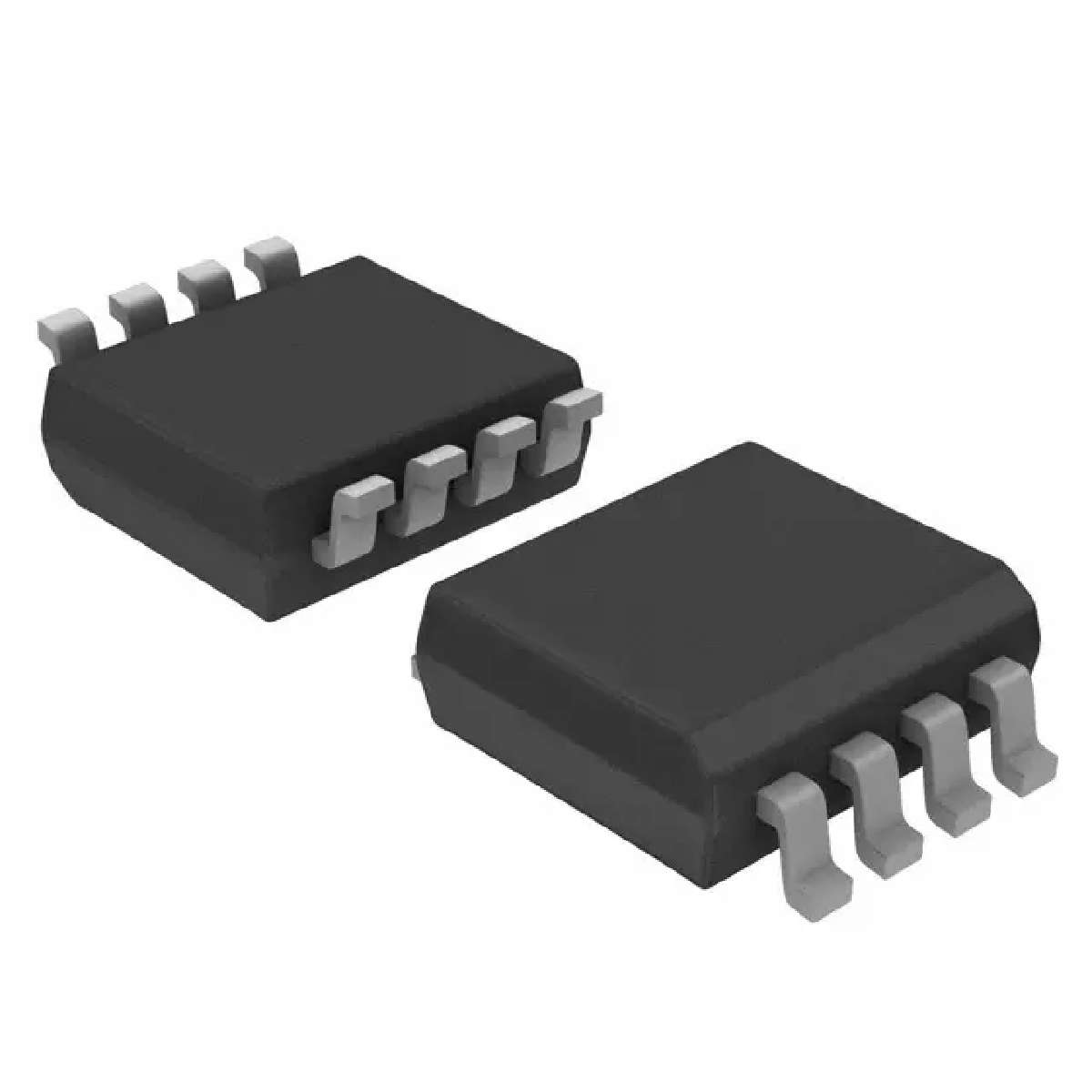

NXP 74AUP1G74DC,125 触发器, 互补输出, 正沿, D, 315 MHz, 20 mA, VSSOP, 8 引脚
The 74AUP1G74DC is a positive-edge trigger D-type Flip-flop with set and reset. It comes with an individual data D, clock, set S\D and reset R\D inputs and complementary Q and Q\ outputs. The S\D and R\D are asynchronous active low inputs and operate independently of the clock input. Information on the data input is transferred to the Q output on the low-to-high transition of the clock pulse. The D input must be stable one set-up time prior to the low-to-high clock transition for predictable operation. Schmitt trigger action at all inputs makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 0.8 to 3.6V. This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 to 3.6V. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
频率 315 MHz
电源电压DC 3.60V max
输出接口数 1
输出电流 20 mA
电路数 1
通道数 1
针脚数 8
时钟频率 315 MHz
位数 1
输入电容 0.6 pF
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
宽度 2.4 mm
高度 0.85 mm
封装 VSSOP-8
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Audio, Consumer Electronics, Medical, Imaging, Video & Vision, Portable Devices, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
