74LVC2G08GM,125

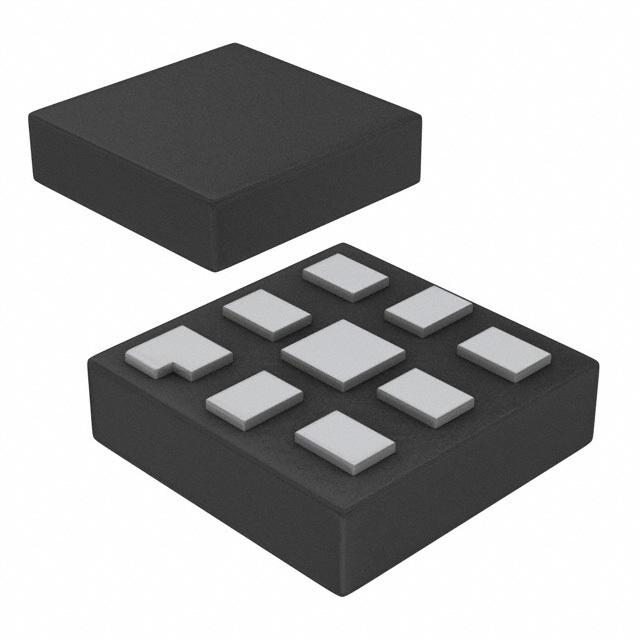

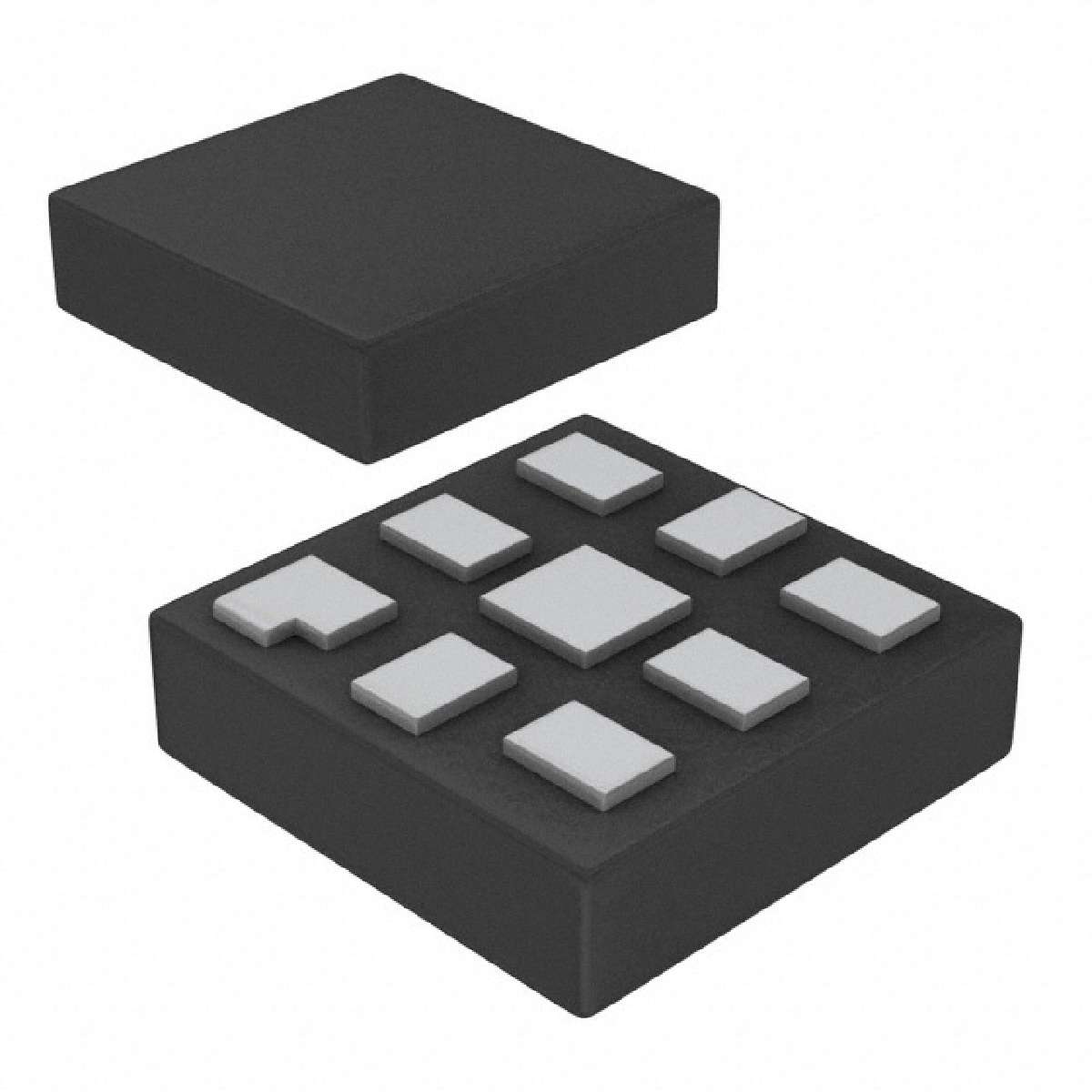

AND Gate 2Element 2IN CMOS 8Pin XQFN8U

* Wide supply voltage range from 1.65 V to 5.5 V * 5 V tolerant outputs for interfacing with 5 V logic * High noise immunity * ±24 mA output drive VCC = 3.0 V * CMOS low power consumption * Complies with JEDEC standard: * JESD8-7 1.65 V to 1.95 V * JESD8-5 2.3 V to 2.7 V * JESD8-B/JESD36 2.7 V to 3.6 V * Latch-up performance exceeds 250 mA * Direct interface with TTL levels * Inputs accept voltages up to 5 V * ESD protection: * HBM JESD22-A114F exceeds 2000 V * MM JESD22-A115-A exceeds 200 V * Multiple package options * Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
