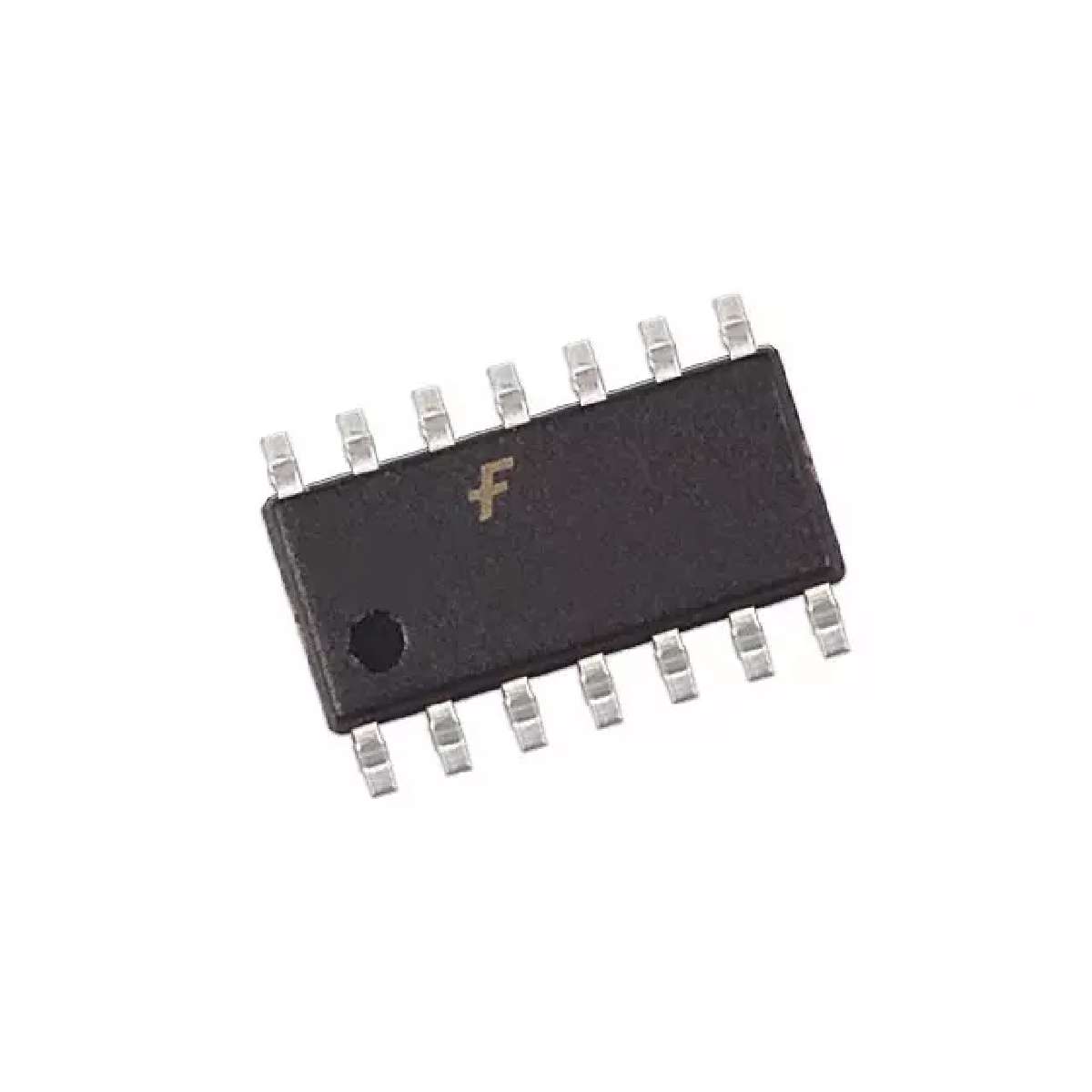

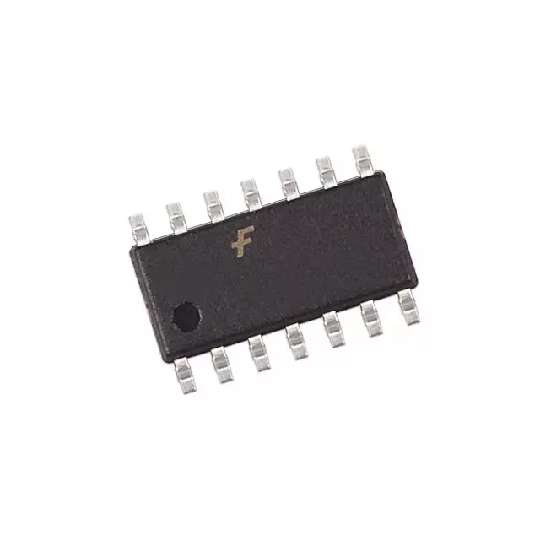

74LCX14SJ

低压六反相器，具有5V容限施密特触发器输入 Low Voltage Hex Inverter with 5V Tolerant Schmitt Trigger Inputs

General Description

The LCX14 contains six inverter gates each with a Schmitt trigger input. They are capable of transforming slowly

changing input signals into sharply defined, jitter-free output signals. In addition, they have a greater noise margin than conventional inverters.

Features

■5V tolerant inputs

■2.3V–3.6V VCCspecifications provided

■6.5 ns tPDmax VCC  3.3V, 10 PA ICCmax

■Power down high impedance inputs and outputs

■r24 mA output drive VCC  3.0V

■Implements patented noise/EMI reduction circuitry

■Latch-up performance exceeds JEDEC 78 conditions

■ESD performance:

    Machine model !200V

    Human model !2000V

■Leadless Pb-Free DQFN package
