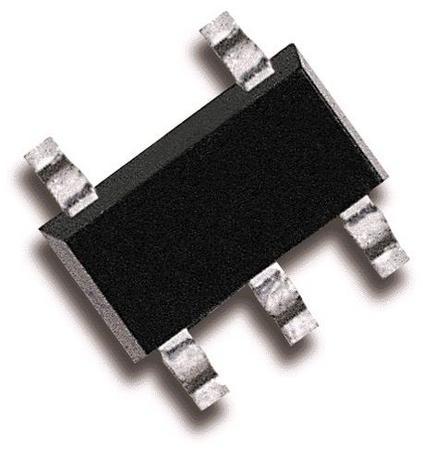

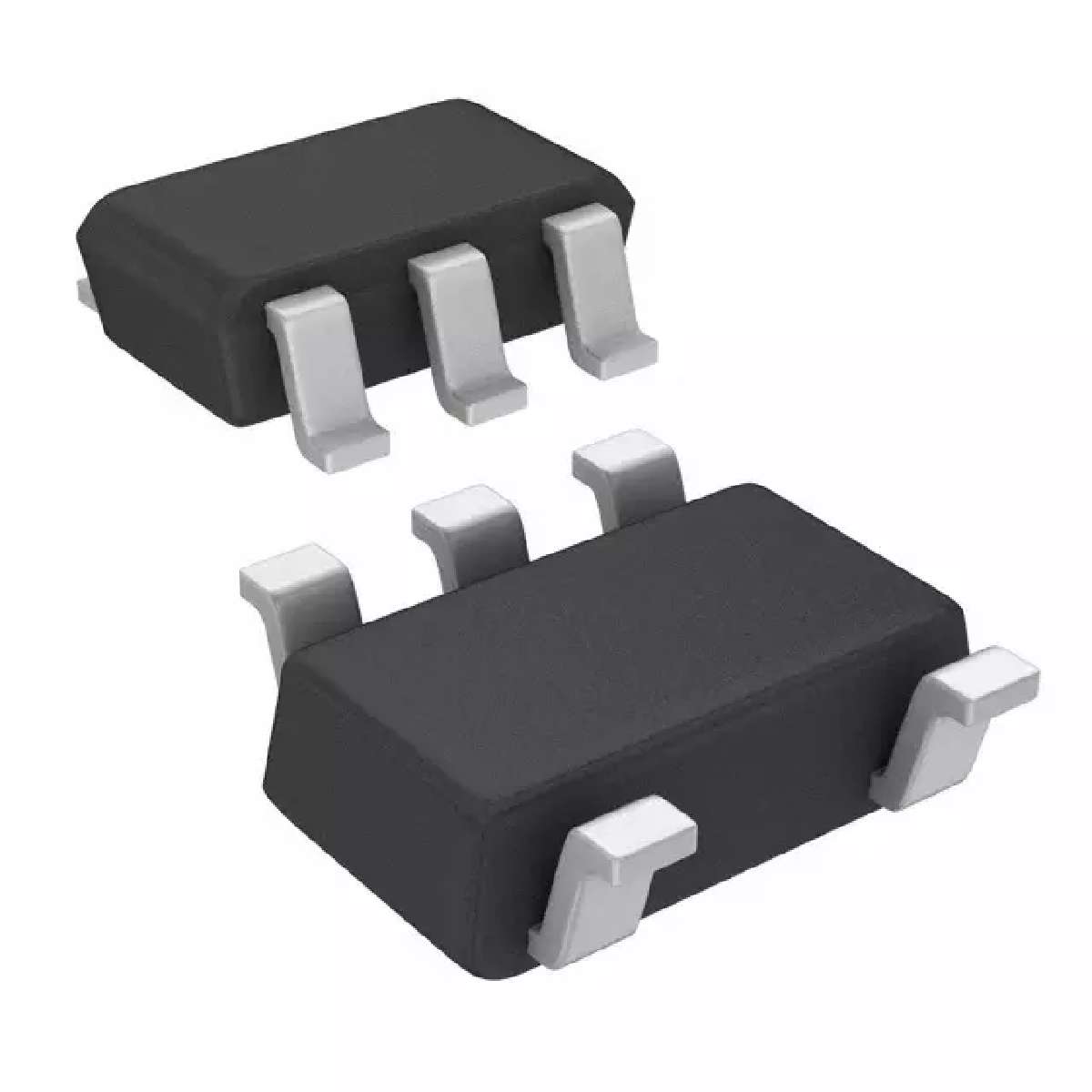

STMICROELECTRONICS 74V1T04STR 逻辑芯片, 单路非门, 74V1T04, SOT23-5
inverting Schmitt triggers from STMicroelectronics are designed specifically to clean up noisy analog signals and convert them into more manageable digital signals. This inverting Schmitt trigger has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 5.00 V
输出电流 8 mA
电路数 1
针脚数 5
逻辑门个数 1
输出电流Max 25 mA
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
高度 1.3 mm
封装 SOT-23-5
工作温度 -55℃ ~ 125℃
产品生命周期 Not Recommended for New Designs
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
