芯片电阻阵列 Chip Resistor Arrays
12 Ohm ±5% 62.5mW Power Per Element Isolated Resistor Network/Array ±200ppm/°C 1206 3216 Metric, Concave, Long Side Terminals
立创商城:
12Ω ±5%
得捷:
RES ARRAY 4 RES 12 OHM 1206
艾睿:

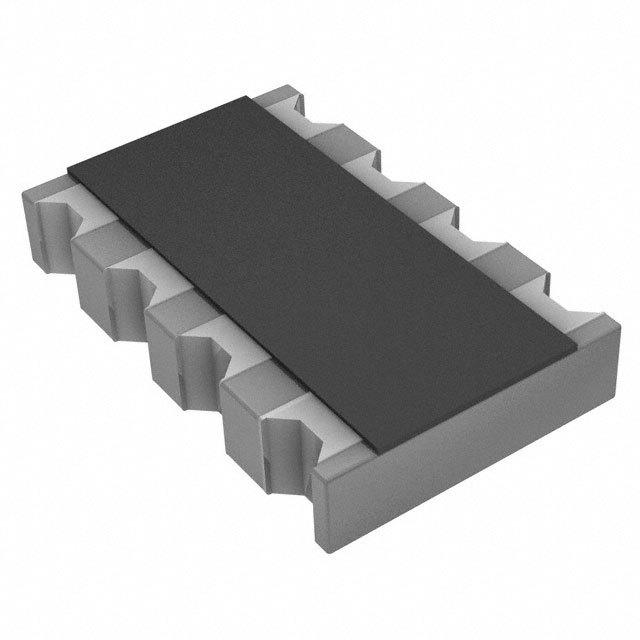

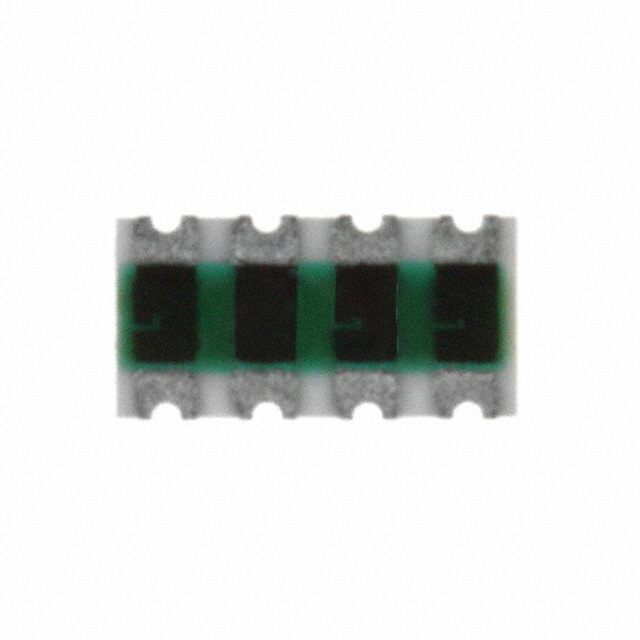

By combining multiple resistors into a single chip, the 742C083120JP resistor array, developed by CTS, can help you save space and power in your circuit design. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 12 Ohm. It has 8 terminals. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with thick film technology. The 742C083120JP part has a concave termination style. This product is 3.2 mm long, 0.53 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.8 mm. It has a tolerance of 5%.
Verical:
Res Thick Film Array 12 Ohm 5% 0.25W1/4W ±200ppm/C ISOL Molded 8-Pin 12064 X 0603 Concave SMD T/R
