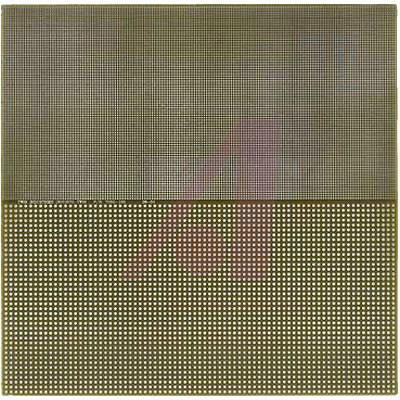

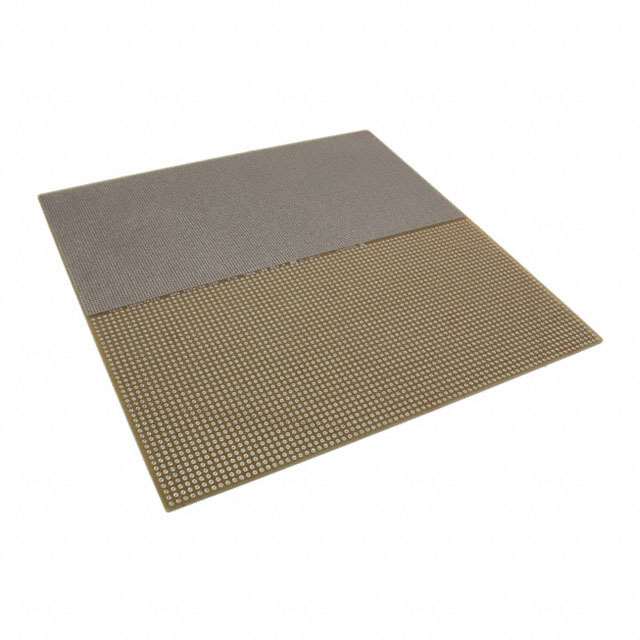

印刷电路板和试验板 4.0"x8.0" L/F Board Size: 8"x8"
General Purpose Prototyping Board
* 4.0" × 8.0" of plated holes on a 0.05" grid and 4.0" × 8.0" of plated holes on a .10" grid.
* Plated hole size is 0.035" for .1" grid area, and 0.026" for .05" grid area.
* Ground plane on rear side of board. Plated holes isolated from plane by annular ring of exposed FR4 material.
* Hi-temp laminate with gold plating
得捷:
BREADBOARD GENERAL PURPOSE PTH
贸泽:
印刷电路板和试验板 4.0"x8.0" L/F Board Size: 8"x8"
艾睿:
Protoboard with 4.0"x8.0" of plated holes on a .05" grid and 4.0"x8.0" of plated holes on a .10" grid. Lead free board, Hi-temp laminate, gold plating. Board Size: 8"x8
Allied Electronics:
PROTOTYPE BOARD, Perforated , 8 in. X 8in, Lead Free.
AMEYA360:
BOARD PROTOTYPING .05/0.1" 8X8"
