Ind RF Choke Bobbin Core 470uH 5% 790kHz 60Q-Factor Ferrite 90mA AXL T/R
470µH Unshielded Wirewound Inductor 90mA 14Ohm Max Axial
立创商城:
470uH ±5% 90mA 14Ω
得捷:
FIXED IND 470UH 90MA 14 OHM TH
艾睿:

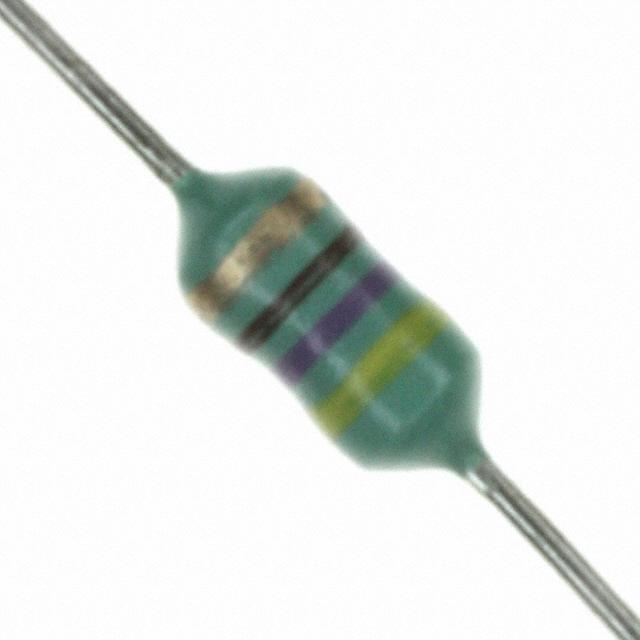

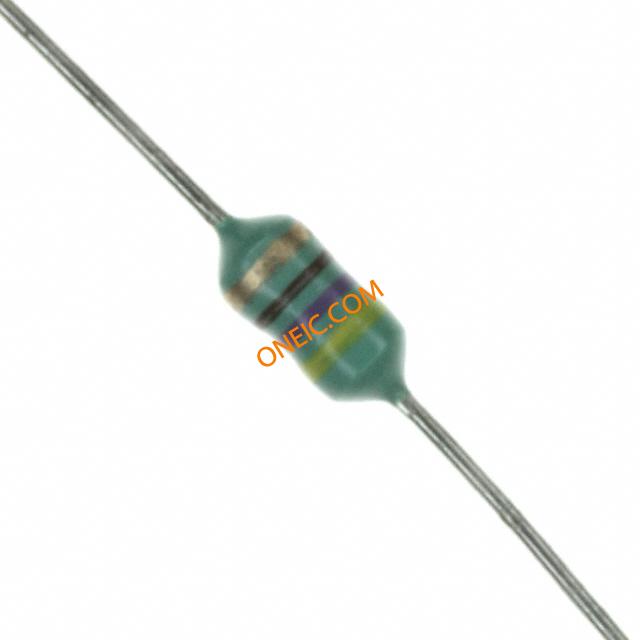

This rf choke 78F471J-TR-RC leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This device utilizes bobbin core technology. This product is 7.11 mm long with a diameter of 2.79 mm. Its test frequency is 790K Hz, while its minimum self-resonant frequency is 2.55M Hz. This leaded inductor has a maximum DC current of 90m A with a maximum resistance of 14 Ohm. It has a tolerance of 5%. It has an inductance of 470u H.
安富利:
Ind RF Choke Bobbin Core 470uH 5% 790KHz 60Q-Factor Ferrite 90mA AXL T/R
Electro Sonic:
RF Choke Bobbin Core 470uH 5% 790KHz 60Q-Factor Ferrite 90mA 14Ohm DCR AXL T/R
