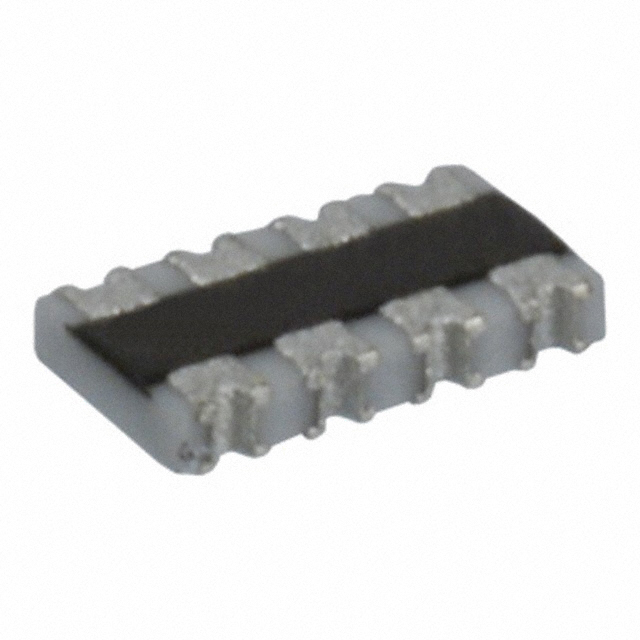

Res Thick Film Array 15KΩ 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8Pin 08044 X 0402 Concave SMD T/R
Conserve space and power by adopting this resistor array from , allowing multiple configurations of resistors to be downsized into an IC. Its temperature coefficient is ±200 ppm/°C. This product"s 4 resistors have a value of 15K Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product"s terminal pitch is 0.5 mm. This device utilizes thick film technology. It has a tolerance of 5%. The 741C083153JP part has a concave termination style. This part has an operating temperature of -55 to 125 °C. This product is 2 mm long, 0.38 mm tall and 1 mm deep.
触点数 8
额定电压DC 25.0 V
容差 ±5 %
额定功率 0.25 W
电阻 15 KΩ
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 8
封装 0804
长度 2 mm
宽度 1 mm
高度 0.38 mm
封装 0804
厚度 350 µm
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
