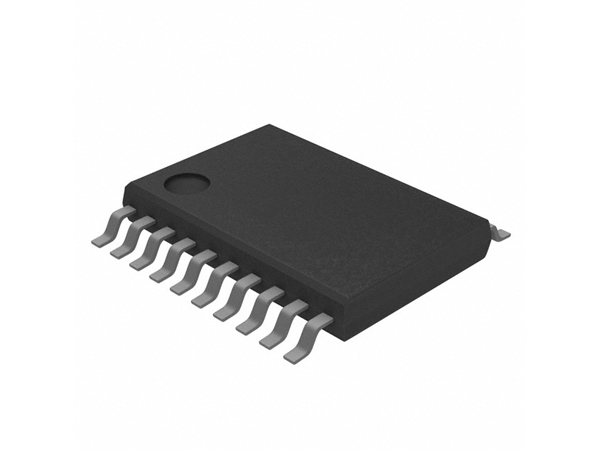

74VHCT541AMTCX

3 态输出

General Description

The VHCT541A is an advanced high-speed CMOS device fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissi pation. The VHCT541A is an octal buffer/line driver designed to be employed as memory and address drivers, clock drivers and bus oriented transmitter/receivers.

Features

• High Speed: tPD  5.5 ns typ at VCC  5V

• Low power dissipation: ICC  4 PA max at TA  25qC

• Power down protection is provided on all inputs and outputs

• Pin and function compatible with 74HCT541
