74LCX74M

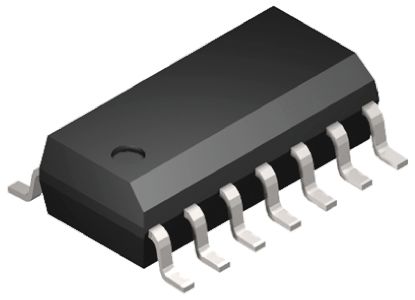

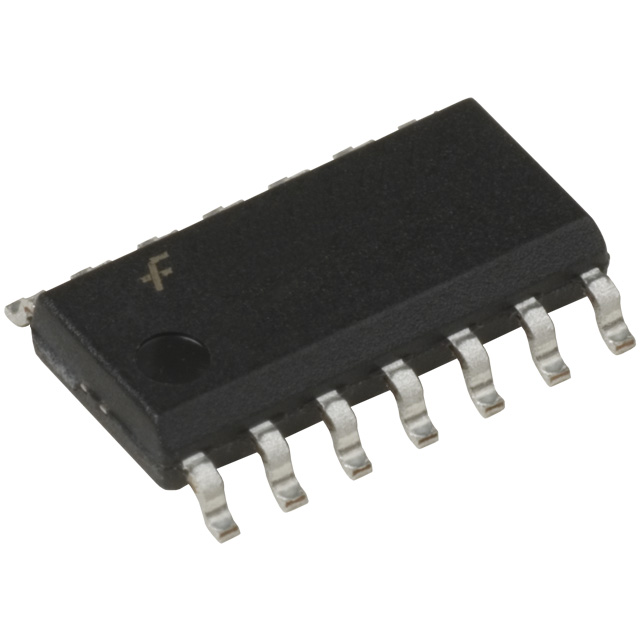

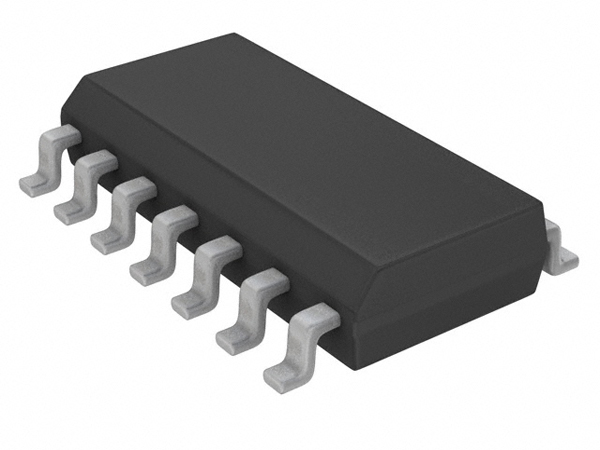

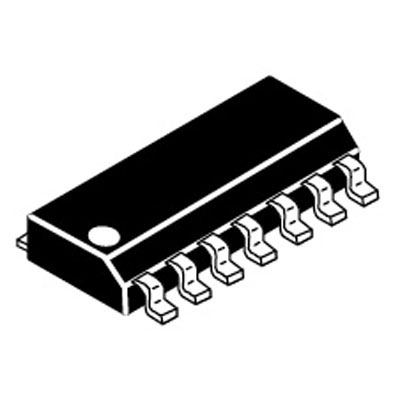

FAIRCHILD SEMICONDUCTOR  74LCX74M  触发器, 设置和复位, 互补输出, 正沿, D, 7 ns, 150 MHz, 24 mA, SOIC, 14 引脚

The is a dual D-type Flip-flop with asynchronous clear and set inputs and complementary Q, Q\\ outputs. Information at the input is transferred to the outputs on the positive edge of the clock pulse. After the clock pulse input threshold voltage has been passed, the data input is locked out and information present will not be transferred to the outputs until the next rising edge of the clock pulse input.

.

5V Tolerant inputs

.

Power down high impedance inputs and outputs

.

±24mA Output drive current

.

Implements proprietary noise/EMI reduction circuitry

.

Latch-up performance exceeds JEDEC 78 conditions
