具有三态输出的双总线缓冲器门 DUAL BUS BUFFER GATE WITH 3 STATE OUTPUTS
By driving the input to the transmission line this buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V. It has 2 channels per chip.
输出接口数 2
通道数 2
位数 2
传送延迟时间 3.70 ns
逻辑门个数 2
输入数 2
工作温度Max 125 ℃
工作温度Min 40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8

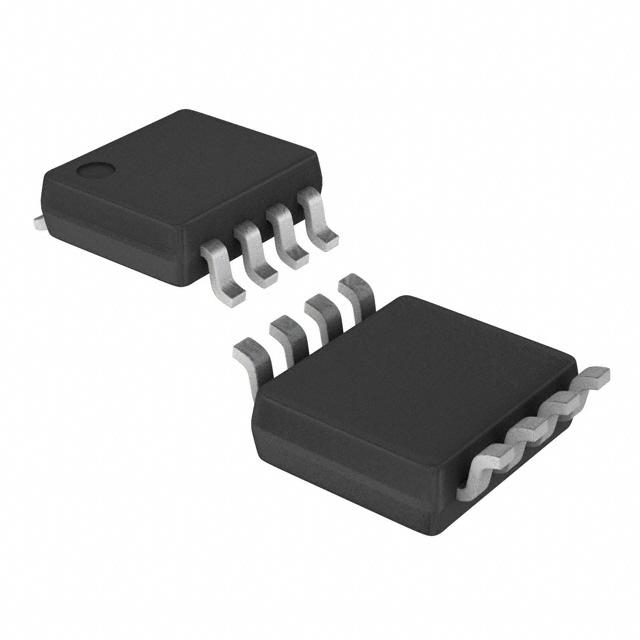

封装 VSSOP-8
长度 2.3 mm
宽度 2 mm
高度 0.85 mm
封装 VSSOP-8
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
