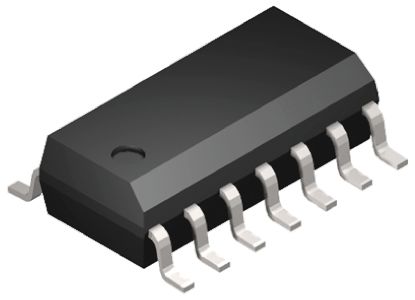

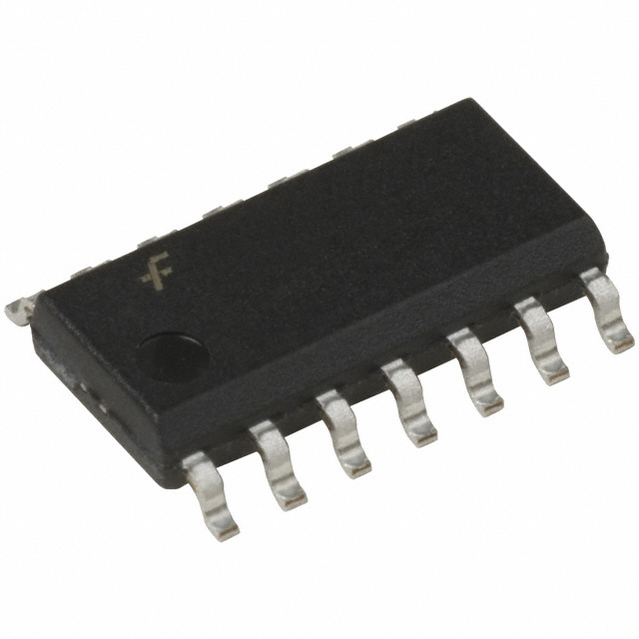

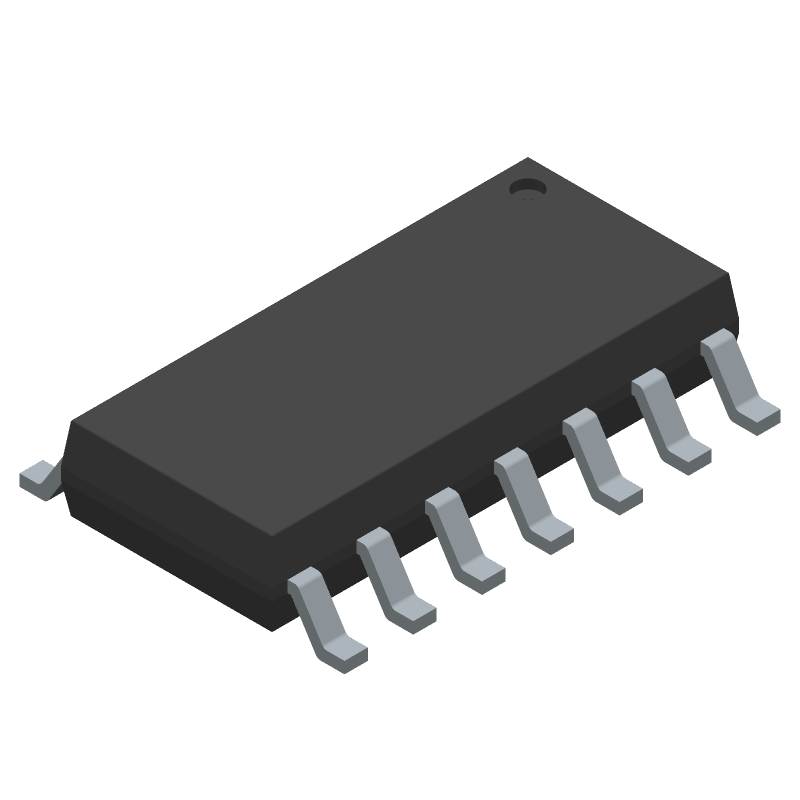

FAIRCHILD SEMICONDUCTOR 74VHC74M 触发器, 设置和复位, 互补输出, 正沿, D, 6.1 ns, 170 MHz, 8 mA, SOIC, 14 引脚
The is a dual D-type Flip-flop with preset and clear. It is fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The signal level applied to the D input is transferred to the Q output during the positive going transition of the clock pulse. CLR\ and PR\ are independent of the CK and are accomplished by setting the appropriate input low. An input protection circuit ensures that 0 to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 to 3V systems and two supply systems such as battery backup. This circuit prevents device destruction due to mismatched supply and input voltages.
频率 170 MHz
数字逻辑电平 CMOS
电源电压DC 5.00 V, 5.50 V max
输出电流 8 mA
电路数 2
通道数 2
针脚数 14
时钟频率 115 MHz
位数 2
极性 Non-Inverting, Inverting
逻辑门个数 2
输入电容 4 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
